Product Description

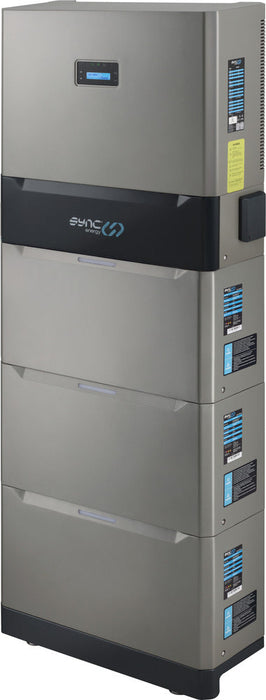

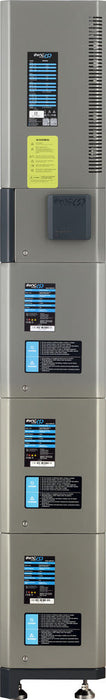

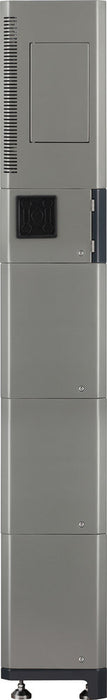

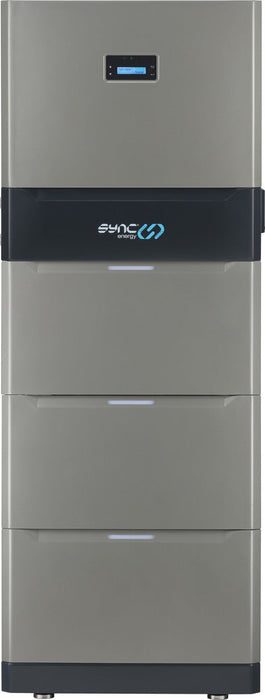

The Sync Energy Flow All-In-One 3.6kW Hybrid Inverter with 3 Batteries is a high-capacity, integrated energy storage system designed for homes with greater energy demands. By combining a hybrid inverter, modular battery storage and smart control into one sleek, stackable unit, it enables homeowners to maximise solar self-consumption, reduce energy bills and maintain power during outages.

This configuration is supplied with three 5.12kWh LiFePO₄ batteries, providing a total usable storage capacity of 15.36kWh (90% depth of discharge). The system is fully PV-ready, allowing solar panels to be added at any time, and the modular design makes future battery expansion simple without replacing the inverter.

Intelligent energy management is delivered via the Sync Energy app, offering real-time monitoring of solar generation, grid usage and battery performance. With integrated safety features, outdoor-rated protection and silent operation, the Flow system is a future-proof solution for modern, energy-conscious homes.

Key Features & Benefits

• All-in-one stackable hybrid inverter and battery storage system
• 3.6kW hybrid inverter output
• Supplied with 3 × 5.12kWh LiFePO₄ batteries (15.36kWh total)
• Scalable modular battery storage up to 35.84kWh
• PV-ready – solar PV systems can be added at any time
• LiFePO₄ battery technology for superior safety and long service life
• Integrated fire suppression for enhanced protection
• Integrated heating for operation below 5°C
• Built-in AC and DC surge protection
• Remote monitoring and control via the Sync Energy smart app
• IP65 ingress protection and IK10 impact resistance
• Silent operation with zero audible noise

Dimensions & Weight

• Dimensions (HxWxD): 2400 × 600 × 245 mm
• Total Weight: 201.8 kg

Installation Details

• Installation methods: Wall or ground mounted
• Wall mounting bracket supplied
• Five wall fixing positions
• Three integrated switches
• Nine selective cable entry points
• Screw terminals (Combi) with 6mm² capacity
• Captive and backed-out terminal screws for ease of installation
• Two earth terminals
• Fixing screws supplied

Construction & Appearance

• Steel housing with galvanised front finish
• Painted polycarbonate base
• Anthracite Grey finish (RAL 7016)
• Three-module configuration
• Green LED power indicator
• UV stable for long-term outdoor installation

Technical Specifications

• Rated power: 3.6kW
• Average active efficiency: 97%
• IP rating: IP65
• IK rating: IK10
• Operating temperature range: -25°C to +55°C
• Wi-Fi standards: 802.11 b/g/n
• Wireless protocol: Wi-Fi 2.4 / 5GHz
• Connection type: RS485
• Smart enabled with Sync Energy app
• Meter accuracy: Class C (±2.0%)

Battery Information

• Battery included: Yes (3 modules supplied)
• Battery type: LiFePO₄ (Lithium Iron Phosphate)
• Battery capacity per module: 5.12kWh
• Total battery capacity supplied: 15.36kWh
• Battery weight (per module): 51.1 kg
• Depth of discharge: 90%

Compliance

• WEEE group: 1 (Large household appliances)

Downloads & Resources

Data Sheet:
View the Data Sheet

Instruction Manual:
View the Instruction Manual

BG Sync Energy Flow Catalogue:
View the Catalogue
