Product Description

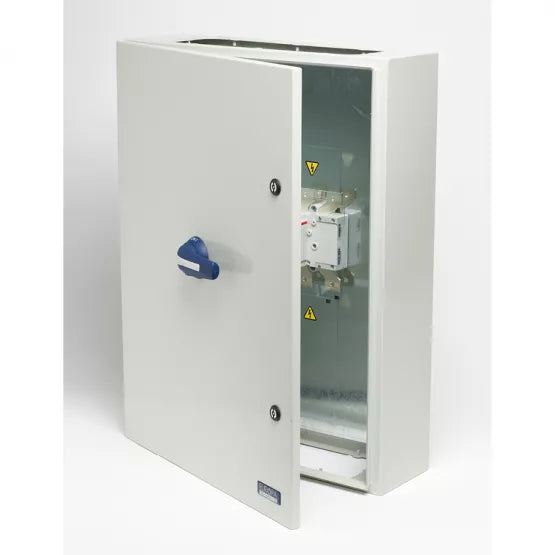

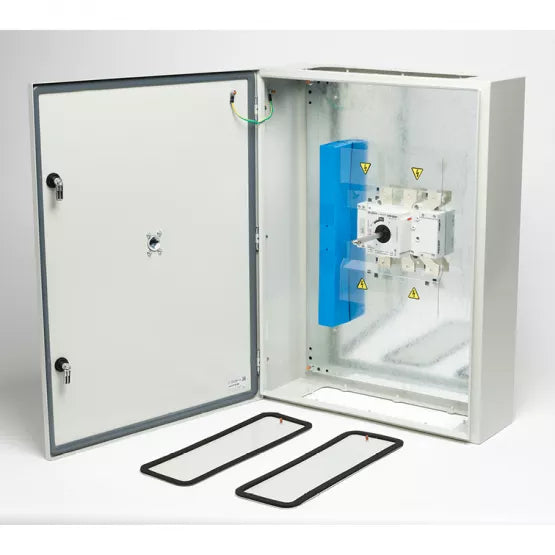

The Europa LB4003PNLME is a heavy-duty 400A steel enclosed switch disconnector designed for safe and reliable electrical isolation in commercial and industrial power distribution systems. Featuring a 3 pole configuration with a fully rated neutral link, it provides dependable neutral continuity while maintaining high operational safety.

Constructed within an epoxy-coated steel enclosure and rated to IP65, this switch disconnector offers excellent protection against dust and water ingress, making it suitable for demanding indoor and outdoor environments. A padlockable handle and door interlock with defeat mechanism further enhance security and maintenance safety.

Key Features & Benefits

• 3 pole switch disconnector with fully rated neutral link
• 400A rated with AC-23 operational performance
• IP65 ingress protection for harsh environments
• Durable epoxy-coated steel enclosure (RAL 7035)
• Padlockable handle in the OFF position for added security
• Door interlock with defeat mechanism for safe servicing
• Lug terminals for secure high-current cable connections
• Top and bottom gland plates for flexible cable entry
• Multiple installation configurations available

Typical Applications

• Main and sub-main electrical isolation
• Commercial and industrial power distribution
• Plant rooms and switch rooms
• Manufacturing and processing facilities
• Infrastructure and utility installations

Technical Specification

• Manufacturer: Europa
• Model: LB4003PNLME
• Rated Current: 400A
• Operational Rating: AC-23
• Poles: 3 Pole + Neutral Link
• Ingress Protection: IP65
• Enclosure Material: Epoxy coated steel
• Colour: RAL 7035 (Grey)
• Terminal Type: Lug terminals
• Mounting: Surface mounted
• Dimensions: H 800 × W 600 × D 200 mm

Downloads

Data Sheet:
Click here to download the LB4003PNLME data sheet
