Product Description

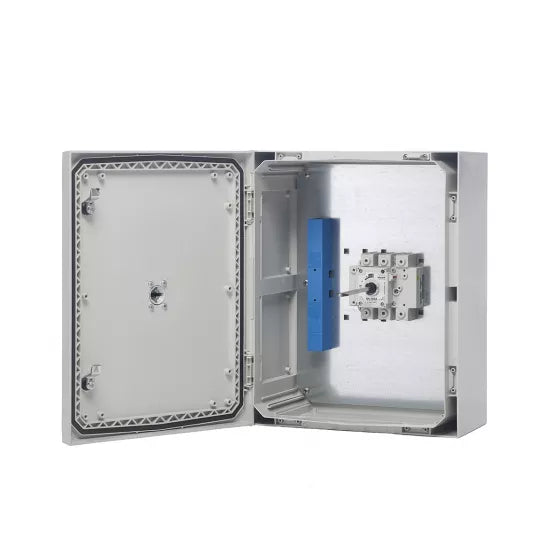

The Europa LB4003PNLGP is a heavy-duty 400A switch disconnector designed for safe and reliable electrical isolation in commercial and industrial power distribution systems. Featuring a 3 pole configuration with a fully rated neutral link, it is ideal for applications where a permanent neutral connection is required.

Manufactured with a high-strength GRP (Glass Reinforced Polyester) enclosure, this unit offers excellent resistance to dust, water ingress and harsh environmental conditions. With an IP66 rating, halogen-free construction and a 960°C glow wire flammability rating, it delivers outstanding safety and long-term durability.

Key Features & Benefits

• 3 pole switch disconnector with fully rated neutral link
• 400A rated with AC-23 operational performance
• IP66 protection suitable for indoor and outdoor use
• GRP enclosure with halogen-free construction
• Glow wire flammability tested to 960°C
• Padlockable handle in the OFF position for enhanced security
• Door interlock with defeat mechanism for safe operation
• Lug terminals for secure high-current connections
• Flexible installation options across multiple applications

Typical Applications

• Industrial power distribution
• Outdoor electrical installations
• Plant rooms and service risers
• Commercial isolation points
• Harsh and exposed environments

Technical Specification

• Manufacturer: Europa
• Model: LB4003PNLGP
• Rated Current: 400A
• Operational Rating: AC-23
• Poles: 3 Pole + Neutral Link
• Ingress Protection: IP66
• Enclosure Material: GRP (Glass Reinforced Polyester)
• Colour: RAL 7035 (Grey)
• Flammability Rating: Glow wire tested to 960°C
• Construction: Halogen free
• Terminal Type: Lug terminals
• Mounting: Surface mounted
• Dimensions: H 800 × W 600 × D 300 mm

Downloads

Data Sheet:
Click here to download the LB4003PNLGP data sheet
