Product Description

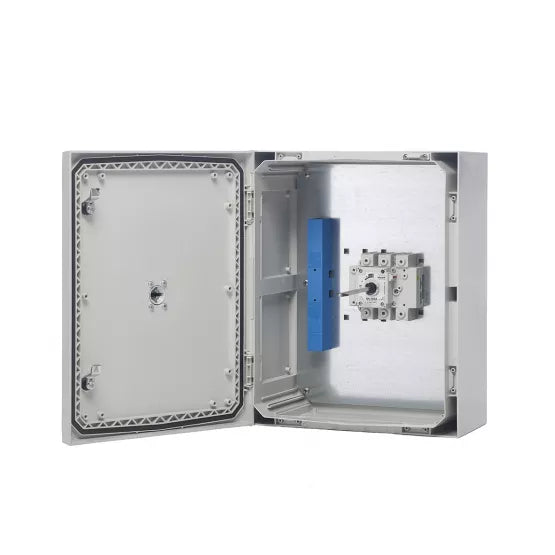

The Europa LB2503PNLGP is a heavy-duty 250A switch disconnector designed for safe and reliable electrical isolation in commercial and industrial environments. Featuring a 3 pole configuration with a fully rated neutral link, it is ideal for applications where the neutral must remain permanently connected.

Manufactured with a high-strength GRP (Glass Reinforced Polyester) enclosure and rated to IP66, this unit delivers excellent protection against dust, water ingress and harsh site conditions. Safety is further enhanced by a padlockable handle in the OFF position and a door interlock with defeat mechanism, ensuring controlled and secure access.

Key Features & Benefits

• 3 pole switch disconnector with fully rated neutral link
• 250A rated with AC-22 operational performance
• IP66 rated for demanding indoor and outdoor installations
• Durable GRP enclosure, halogen free construction
• Glow wire flammability rating tested to 960°C
• Padlockable handle in the OFF position for added safety
• Door interlock with defeat mechanism
• Lug terminals for secure high-current connections
• Flexible installation options across multiple applications

Typical Applications

• Industrial power distribution systems
• Outdoor electrical installations
• Plant rooms and service risers
• Commercial isolation points
• Harsh and exposed environments

Technical Specification

• Manufacturer: Europa
• Model: LB2503PNLGP
• Rated Current: 250A
• Operational Rating: AC-22
• Poles: 3 Pole + Neutral Link
• Ingress Protection: IP66
• Enclosure Material: GRP (Glass Reinforced Polyester)
• Colour: RAL 7035 (Grey)
• Flammability Rating: Glow wire tested to 960°C
• Construction: Halogen free
• Terminal Type: Lug terminals
• Mounting: Surface mounted
• Dimensions: H 600 × W 400 × D 210 mm

Downloads

Data Sheet:
Click here to download the LB2503PNLGP data sheet
