Product Description

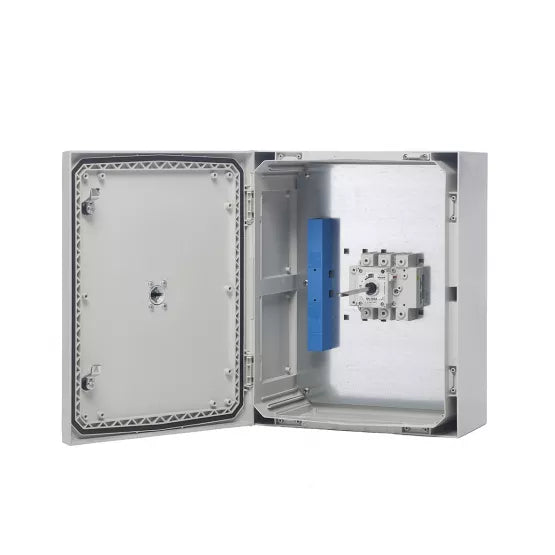

The Europa LB2003PNLGP is a high-performance 200A switch disconnector designed for demanding industrial and commercial environments. Featuring a 3 pole configuration with a fully rated neutral link, it provides reliable isolation where a permanent neutral connection is required.

Constructed from durable GRP (Glass Reinforced Polyester) and rated to IP66, this enclosure offers excellent protection against dust, water ingress and harsh environmental conditions. Additional safety features include a padlockable handle and door interlock with defeat mechanism, ensuring secure and controlled operation during maintenance.

Key Features & Benefits

• 3 pole switch disconnector with fully rated neutral link
• 200A rated with AC-22 operational performance
• IP66 ingress protection for outdoor and harsh environments
• Robust GRP enclosure, halogen-free construction
• Glow wire flammability rating up to 960°C
• Padlockable handle in the OFF position
• Door interlock with defeat mechanism for added safety
• Lug terminals for secure cable termination
• Multiple installation configurations supported

Typical Applications

• Industrial power distribution systems
• Outdoor electrical installations
• Plant rooms and control panels
• Infrastructure and utility networks
• Commercial and industrial isolation points

Technical Specification

• Manufacturer: Europa
• Model: LB2003PNLGP
• Rated Current: 200A
• Operational Rating: AC-22
• Poles: 3 Pole + Neutral Link
• Ingress Protection: IP66
• Enclosure Material: GRP (Glass Reinforced Polyester)
• Colour: RAL 7035 (Grey)
• Flammability Rating: Glow wire tested to 960°C
• Construction: Halogen free
• Terminal Type: Lug terminals
• Mounting: Surface mounted
• Dimensions: H 600 × W 400 × D 210 mm

Downloads

Data Sheet:
Click here to download the LB2003PNLGP data sheet
