Product Description

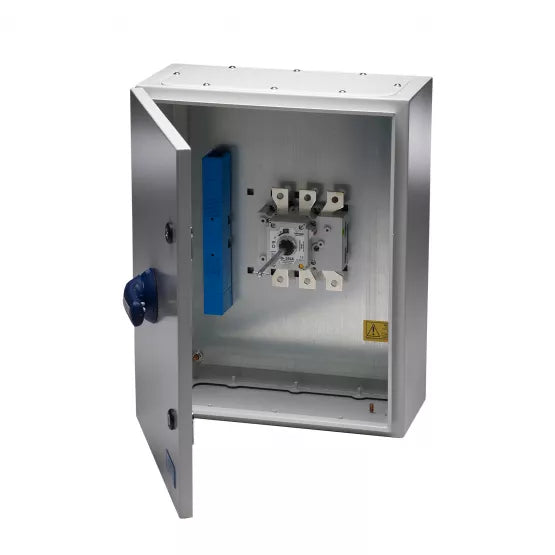

The Europa LB1603PNLME is a robust 160A steel enclosed switch disconnector, designed for safe and reliable isolation in commercial and industrial electrical installations. Featuring a 3 pole configuration with a fully rated neutral link, this unit is AC-23 rated and built to withstand demanding operating environments.

Housed within an epoxy-coated steel enclosure and rated to IP65, the LB1603PNLME provides excellent protection against dust and water ingress. Safety is further enhanced through a padlockable handle in the OFF position and a door interlock with defeat mechanism, ensuring secure operation during servicing and maintenance.

Key Features & Benefits

• 3 pole configuration with fully rated neutral link
• 160A rated (AC-23 duty)
• IP65 ingress protection for indoor and outdoor use
• Durable epoxy-coated steel enclosure
• Padlockable handle in the OFF position
• Door interlock with defeat mechanism for added safety
• Tunnel terminals for secure and reliable connections
• Top and bottom gland plates for flexible cable entry
• Compact, over-engineered and user-friendly design
• Wide range of industrial and commercial applications

Applications

• Industrial power distribution systems
• Commercial electrical installations
• Plant rooms and switch rooms
• Machinery and equipment isolation
• Outdoor electrical enclosures

Technical Specification

• Manufacturer: Europa
• Model: LB1603PNLME
• Rated Current: 160A
• Duty Rating: AC-23
• Poles: 3 Pole + Neutral Link
• Ingress Protection: IP65
• Enclosure: Epoxy coated steel
• Colour: RAL 7035 (Grey)
• Terminal Type: Tunnel terminals
• Mounting: Surface mounted
• Dimensions: H 500 x W 400 x D 200 mm

Documentation

Data Sheet:
Click here to download the LB1603PNLME data sheet
