6943X 3 Core Steel Wire Armoured SWA PVC 25.0mm Black Cable - Cut to Length sold per 1 metre

6943X 3 Core Steel Wire Armoured SWA PVC 25.0mm Black Cable - Cut to Length sold per 1 metre

Product Description

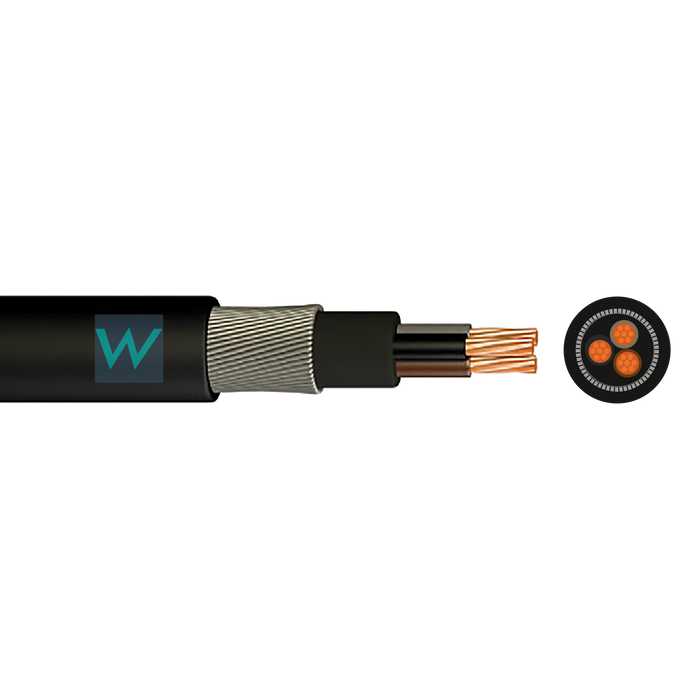

6943X 3 Core Steel Wire Armoured SWA
Steel Wire Armoured (SWA) power and auxiliary control cables for use wherever there is risk of mechanical stress or mechanical damage, including underground and outdoors. Suitable for direct burial use as well as surface clipping, trays, baskets, and free air.

Certification: CE Marked, BASEC Approved, ISO 9001.

Standard: BS EN 5467

Specifications:

• Cable Code: 6943X
• Cable Product Type: 3 Core Steel Wire Armoured (SWA)
• Core Size: 25.0mm
• Outer Sheath Colour: Black
• Inner Core Colour: Brown, Black & Grey
• No. of Cores: 3-Core
• Material: PVC Sheath, PVC Insulation, Copper Conductor
• Cable Profile: Round
• Voltage: 600/1000 V
• Min/Max Operating Temperature: -20^oC/90^oC
• Short Circuit Temperature: 250^oC
• Cable Length: Cut to Length per 1m
• Usage: For use in Outdoor power
