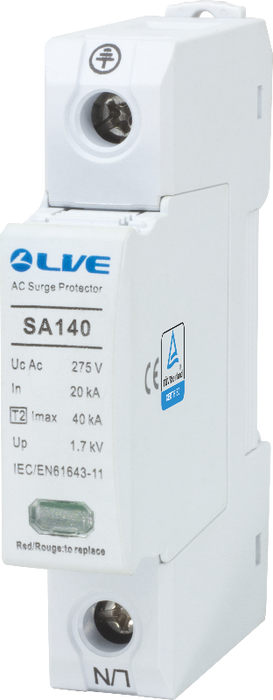

LIVE Electrical SA140 1 Pole 20kA/40kA Type 2 Surge Protective Device (SPD)
SKU SA140
Availability:
IN STOCK
Original price
£7.04
-
Original price
£7.04
Original price
£5.87
Exc VAT
£7.04
Inc VAT
£7.04
-
£7.04
Current price
£7.04
£7.04
-
£7.04
Current price
£7.04
LIVE Electrical SA140 1 Pole 20kA/40kA Type 2 Surge Protective Device (SPD)
Product Description
Surge Protective Device
SPDs are recommended for installations in accordance with 18th edition wiring regulation to protect sensitive and expensive electrical equipment. This range of SPDs are characterised by an 8/20?s current wave, they can prevent the spread of over voltages in electrical installations and protects equipment connected to it. These surge protector must be replaced if the indicator turns red. They comply with BS EN61643-11.
Features:
- Green window will change when device is spent and is fitted with terminals for remote indication.
- Complaint with BS EN 61643-11.
- Type Test Class: Type 2.
- Voltage: 230/380 VAC.
- Nominal discharge current In : 20kA
- Maximum discharge current Imax : 40kA
- lsccr- Short circuit current rating: 25kA.
- Degree of protection: IP20.
