Schneider Electric EZ9L33620KIT Easy9 SPD Surge Arrest Kit T2 1P+N 20kA

Schneider Electric EZ9L33620KIT Easy9 SPD Surge Arrest Kit T2 1P+N 20kA

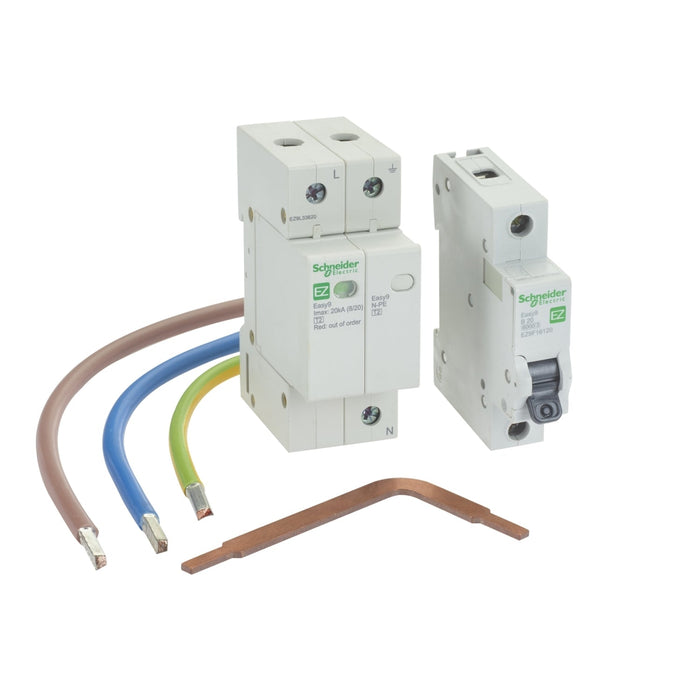

Protects the circuit from switching surges. Surge arrester kit with pole configuration of 1P+N, without remote signalling. Complete with 20A MCB, cables and extended neutral link. Clip on mounting mode on a DIN rail support.

• Range of product: Easy9
• Product or component type: Surge arrester Kit
• Device short name: Easy9 SPD
• Poles: 1P + N
• Remote signalling: Without
• Surge arrester type: Electrical distribution network
• Earthing system: TT TN-S
• Disconnector device type: Associated circuit breaker at 230 V
• Complementary:
• Surge arrester class type: Type 2
• Surge arrester technology: MOV + GDT
• Nominal discharge current: Common mode: 10 kA (N/PE) Common mode: 10 kA (L/N)
• Maximum discharge current: Differential mode: 20 kA L/N Differential mode: 20 kA N/PE
• [Uc] maximum continuous operating voltage: Differential mode: 275 V L/N Differential mode: 275 V N/PE
• Maximum [Up] voltage protection level: Differential mode <1.3 kV type 2 L/N
• Local signalling: Green and red flag
• Mounting mode: Clip-on
• Limitation class: 3
• mounting support: DIN rail
• 9 mm pitches: 4
• Height: 90 mm
• Width: 36 mm
• Depth: 66.2 mm
• Colour: Grey (RAL 7035)
• Response time: <= 25 ns
• Connections - terminals: Tunnel type terminal (downside) 5…35 mm² solid or flexible
• Tightening torque: 3.5 N.m
