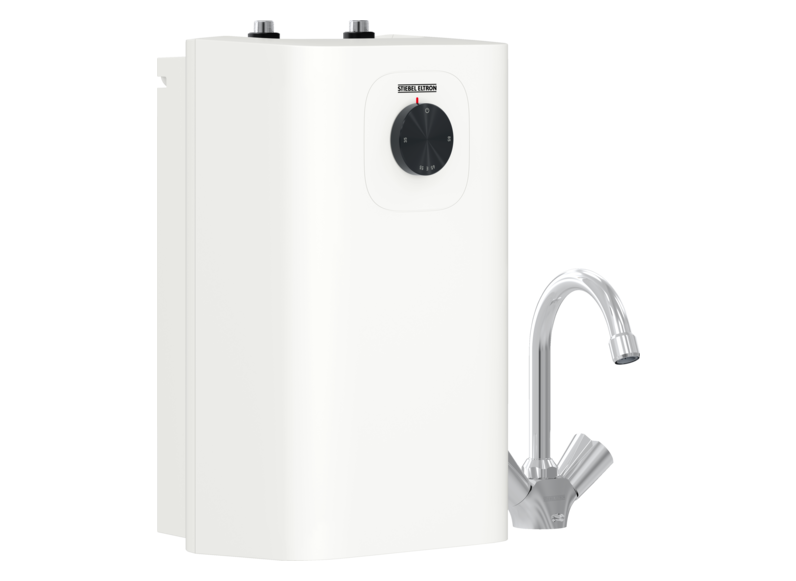

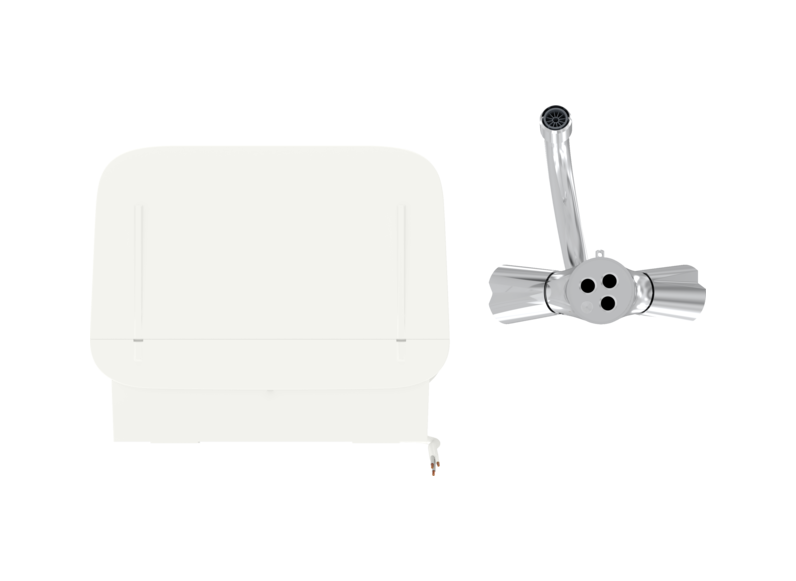

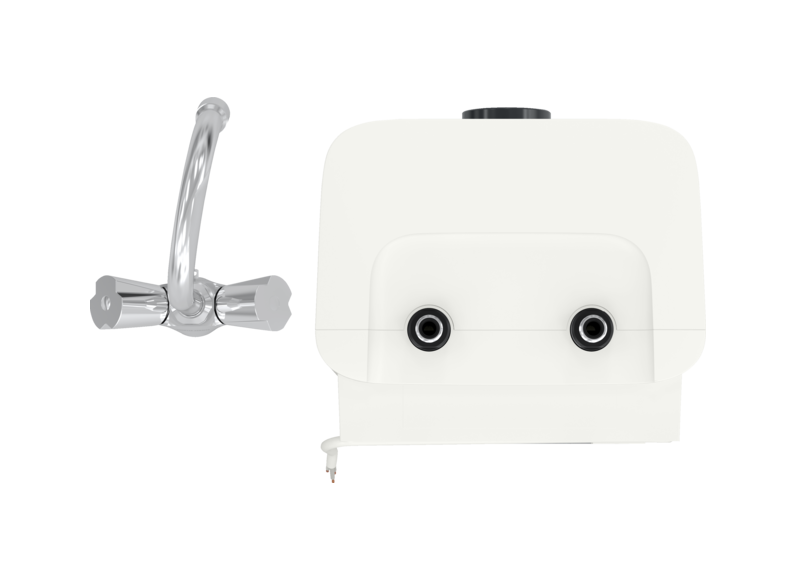

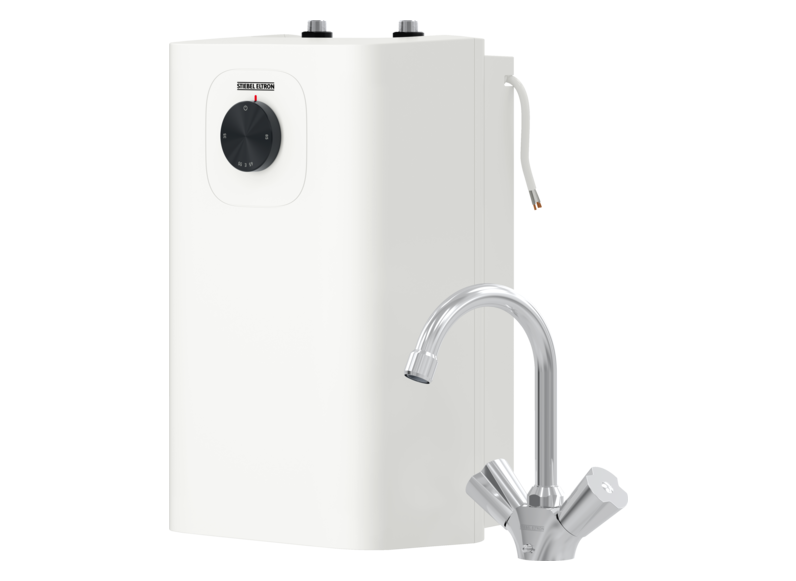

Stiebel Eltron 205848 SNU 5 Plus 5 Litre Small Vented Water Heater with WST-W Tap Kit

SPECIAL ORDER ITEM: 1-2 Days Lead Time, please contact us to find out more

Stiebel Eltron 205848 SNU 5 Plus 5 Litre Small Vented Water Heater with WST-W Tap Kit

Product Description:

The small water heater in a set with mixer tap for a washbasin is suitable for connection to a single draw-off point.

Go for high quality that can be felt
DHW heating at its best: this small water heater for undersink installation has an attractive design that will blend perfectly into your room.As the most compact in their class, the smaller models in particular take up very little space.Despite the small dimensions of this small water heater, it is certainly not lacking in output.
Convenient temperature adjustment
You get hot water quickly, without having to wait.Vary the temperature with the high quality haptic rotary selector. The small water heater requires little energy to keep the water constantly warm for you at the temperature you have selected. Another advantage: replacing an older model is very easy, as you can use the same wall mounting bracket for this small water heater.

Features

• Compact and high quality small water heater for undersink installation
• Hot water available immediately
• Safe use due to adjustable mechanical temperature limit as anti-scalding protection
• Very low energy losses thanks to the high grade thermal insulation and integral thermostop function
• Quick and easy replacement of older appliances thanks to universal wall mounting bracket
• Optimised DHW heating for higher efficiency with ECO mode
• No dripping during heating up, reduced scaling plus water savings thanks to the anti-drip function

Small Water Heater Specifications

• Product Number: 205848
• Connected load: 2 kW
• Rated output 2: 2,0 kW
• Power supply: 1/N/PE
• Rated voltage: 230 V
• Fuse protection 2: 10A
• Frequency: 50-60 Hz
• Energy efficiency class: A
• Standby energy consumption/24 h at 65 °C: 0.19 kWh
• Standby energy consumption/24 h at 38 °C: 0.07 kWh
• Nominal capacity: 5 l
• Mixed water amount at 40 °C: 9.3 l
• Temperature setting range: 35-85 °C
• Version: Small water heater
• Type: open
• Installation type: Undersink
• With tap: No
• Colour: white
• Cable length: 0,6 m
• Operation: manual
• Temperature limit: •
• IP rating: IP 24 D
• Height: 506 mm
• Width: 290 mm
• Depth: 282 mm
• Weight: 2.90 kg

Tap Specifications

• Version: Mixer tap/li>
• Application: Washbasin
• Installation type: Monobloc mixer tap
• Surface: chrome plated
• Connection: Connection hoses
• Spout reach: 128 mm
• Spout height: 148 mm

Data Sheet:

UK ERP Product Datasheet:

EU ERP Product Datasheet:
