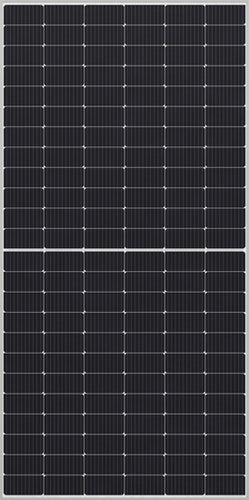

Sharp NU-JD550 550W Solar PV Panel Mono PERC Half-Cut - Silver Frame

Sharp NU-JD550 550W Solar PV Panel Mono PERC Half-Cut - Silver Frame

144 half-cell solar panel designed for large free-field and commercial rooftop photovoltaic systems, optimised for long-term reliability and performance.

• The project solution (1,500 V)
• High module efficiency (21.3%)
• 144 Half-cells, M10 wafer (panel size: 2,278 x 1,134 x 35 mm)
• Multi-busbar technology + temperature coefficient of -0.341%/°C increasing the power gain
• Robust product design (tests passed: PID resistance IEC TS62804, Salt mist IEC61701, Ammonia IEC62716, Sand and Dust IEC60068)
• Proven quality (VDE, IEC/EN 61215 + IEC/EN61730, Safety Class II, CE, UKCA, Fire Rating Class C)
• IP68 rating
• Reliable Warranty: 25 years linear power output guarantee (min. 85% in 25th year) and 15 years product guarantee (Applicable for modules installed within the EU and additional listed countries. Please check the guarantee conditions for your
• area before purchasing.)
• Guaranteed positive power tolerance (at least the specified value and up to 5% more is achieved)
