Schneider Electric EZ9F16116 16A Single Pole B Curve 6kA MCB

SKU EZ9F16116
Availability:
IN STOCK
Original price £2.79 - Original price £2.79
Original price
£2.33 Exc VAT
£2.79 Inc VAT
£2.79 - £2.79
Current price £2.79
£2.79 - £2.79
Current price £2.79
Request a quote
Read More...

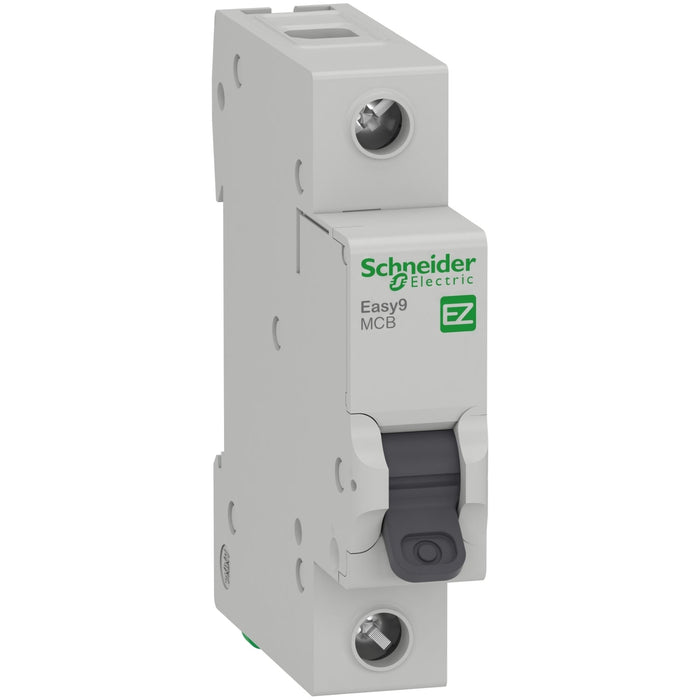

Schneider Electric EZ9F16116 16A Single Pole B Curve 6kA MCB

Product Description

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 16A In rated current and B tripping curve. The rated short circuit breaking capacity goes up to 6000A at 230VAC conforming to BS EN 60898-1 standard and 25kA at 24...48VDC conforming to EN/IEC 60947-2 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 82mm x (D) 72mm. The weight is 100g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.

Specifications
  • Range: Easy9
  • Device application: Distribution
  • Product or component type: Miniature circuit-breaker
  • Device short name: Easy9 MCB
  • Poles: 1P
  • Number of protected poles: 1
  • rated current: 16 A
  • Network type: AC
  • Trip unit technology: Thermal-magnetic
  • Curve code: B
  • Breaking capacity: 6000 A Icn at 230 V AC 50/60 Hz phase to neutral conforming to BS EN 60898-1 6000 A Icn at 400 V AC 50/60 Hz phase to phase conforming to BS EN 60898-1
  • Suitability for isolation: Yes conforming to BS EN 60898-1
  • Complementary:
  • Network frequency: 50/60 Hz
  • [Ue] rated operational voltage: 230/240 V
  • magnetic tripping limit: 3...5 x In
  • [Ics] rated service breaking capacity: 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to BS EN 60898-1
  • Limitation class: 3 conforming to BS EN 60898-1
  • [Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to BS EN 60898-1
  • [Uimp] rated impulse withstand voltage: 4 kV conforming to BS EN 60898-1
  • Contact position indicator: Yes
  • [In] rated current: 100 A
  • Control type: Toggle
  • local signalling: Without
  • Mounting mode: Clip-on
  • mounting support: DIN rail
  • 9 mm pitches: 2
  • Height: 82 mm
  • Width: 18 mm
  • Depth: 72 mm
  • Net weight: 100g
  • Colour: Grey (RAL 7035)
  • Mechanical durability: 10000 cycles
  • Electrical durability: 4000 cycles
  • Connections - terminals: Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible
  • Tightening torque: 2 N.m top or bottom
  • Earth-leakage protection: Without
