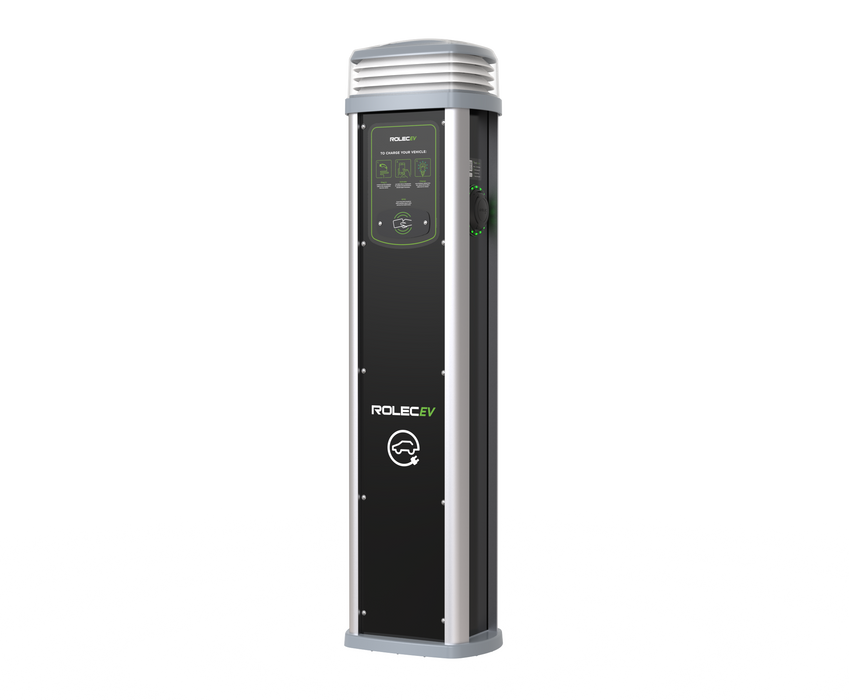

Rolec ROLEC0421B Quantum Smart EV Charging Pedestal - 2x up to 7.4kw Type 2 Sockets - Black

Rolec ROLEC0421B Quantum Smart EV Charging Pedestal - 2x up to 7.4kw Type 2 Sockets - Black

The QUANTUM EV charging pedestal is a sophisticated and resilient EV charging point, providing a combination of durability and impeccable design for all locations. This charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.

This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system.

Feature-rich, this EV charger supports dynamic load balancing and is equipped with PME fault detection, so there is no requirement for an earth rod, reducing installation costs.

Available in 1way or 2way versions, providing up to 22kW superfast charging.

UP TO 22KW - Available in both single phase and three phase models, providing up to 22kW superfast charging. QUANTUM is compatible with all EVs & PHEVs, charging at the fastest speed possible, ensuring vehicles are ready to go in no time.

4 WAY CHARGING - The QUANTUM is available in 1way, 2way and 4way versions, allowing up to four vehicles to charge simultaneously, using just one EV charging pedestal. The perfect EV charging pedestal solution for fleet, workplace and car park requirements.

ACCURATE BILLING - Built-in MID-approved energy metering ensures accurate consumption reporting, which is essential for businesses and residential car parks, wishing to bill for their usage. Use our back-office management platform to generate revenue by setting your own tariffs.

SAFE AND SECURE - Rest assured, Rolec’s entire EV chargepoint range meets the currently required safety and security standards. Over-the-air updates allow the chargers to receive the very latest features, ensuring a safe and future-proof product 24/7.

3 YEAR WARRANTY - Rolec EV chargepoints are designed, developed and manufactured in the UK and come with a 3 year warranty included as standard, for added peace of mind on your investment.

Features:

• Plug & charge, mobile app or RFID controlled charging
• Choose from 1x, 2x or 4x universal charging socket(s)
• Up to 7.4kW or 22kW charging output(s)
• TruePEN PME fault detection (no earth rod required)
• Supports dynamic load balancing & static load management
• OCPP 1.6 compliant (Can integrate with any back-office)
• Over-the-air firmware / software updates
• Built-in AC overload & fault current protection (RCBO)
• Built-in 6mA DC leakage protection
• Cable lock security feature (can be permanently locked by user)
• Integrated RFID reader(s)
• MID-approved energy metering
• 4G / Wi-Fi / Ethernet connectivity
• IK10 impact resistant design
• Surface or root mountable
• OZEV grant fundable
• Designed & manufactured in the UK

Specifications:

• Connection Type: 2x Type 2 (IEC 62196) charging sockets
• Charging Output:Up to 7.4kW (32A) per socket
• Input Supply: 1x 63A Single Phase 230V AC (±10 %) 50/60Hz
• Colour: Black
