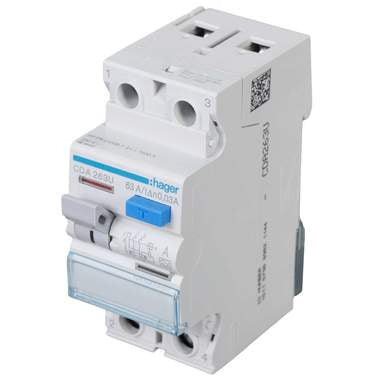

Hager CDA263U 2 Pole 63A 30mA Type A RCD

SKU CDA263U
Availability:
IN STOCK
Original price £39.89 - Original price £39.89
Original price
£33.24 Exc VAT
£39.89 Inc VAT
£39.89 - £39.89
Current price £39.89
£39.89 - £39.89
Current price £39.89
Request a quote
Read More...

Hager CDA263U 2 Pole 63A 30mA Type A RCD

    Features of RCD Device
    • RCD 2P 63A 30mA A Class
    • Positive contact indication is provided by the rectangular flag indicator
    • Red = Closed
    • Green = Open
    • Yellow = Tripped
    • Indication of trip is provided by the oval flag indicator
    • All RCCBs have trip free mechanisms and can be padlocked either on or off with the use of a MZN175
    • Conforms to BS EN 61008, IEC1008

    Specification

    • Number of poles: 2 P
    • Number of modules: 2
    • Residual current type: A
    • Rated operational voltage Ue: 230V
    • Rated current: 63 A
    • Rated insulation voltage: 500 V
    • Rated residual operating current: 30 mA
    • Rated conditional short-circuit current Inc according to EN 61008-1: 6 kA
    • Depth of installed product: 70 mm
    • Height of installed product: 83 mm
    • Width of installed product: 35 mm

    Data Sheet:

    Click Here for Data Sheet
