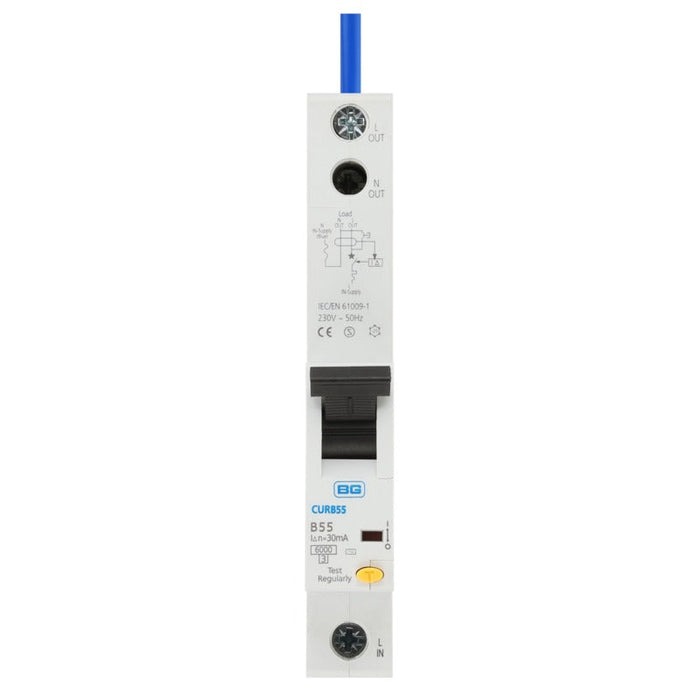

BG CURB55 55A Single Pole 1 Module B Curve 6kA 30mA Type AC RCBO

BG 55A Single Pole 1 Module B Curve 6kA 30mA Type AC RCBO

Features of the Consumer Units range

• Lockable cover option available
• Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
• Spirit level, to enable quick installation
• Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time

Circuit Protection - RCBOs
The single module RCBOs are a combination of B Curve MCB and an RCD. This provides overload and short circuit protection as well as earth fault current protection in one device.
A combined MCB and RCD allows earth fault protection of a single circuit, and helps reduce nuisance tripping of other circuits, i.e. avoids unnecessary inconvenience and improves safety in the home. For example the lighting circuit remains on whilst a problem with another circuit is disconnected.
All RCBOs have a positive contact status indicator, i.e. when green window is visible this indicates that there is a 4mm contact gap.

This item is 55A 30mA RCBO, Single Pole, Breaking capacity 6kA

Features

• Positive contact indication status
• Device capable of being locked in the 'ON' or 'OFF' position
• Manufactured and tested to EN/IEC 61009-1 standards
• 6kA breaking capacity
• Type AC, B Curve
• 55A
