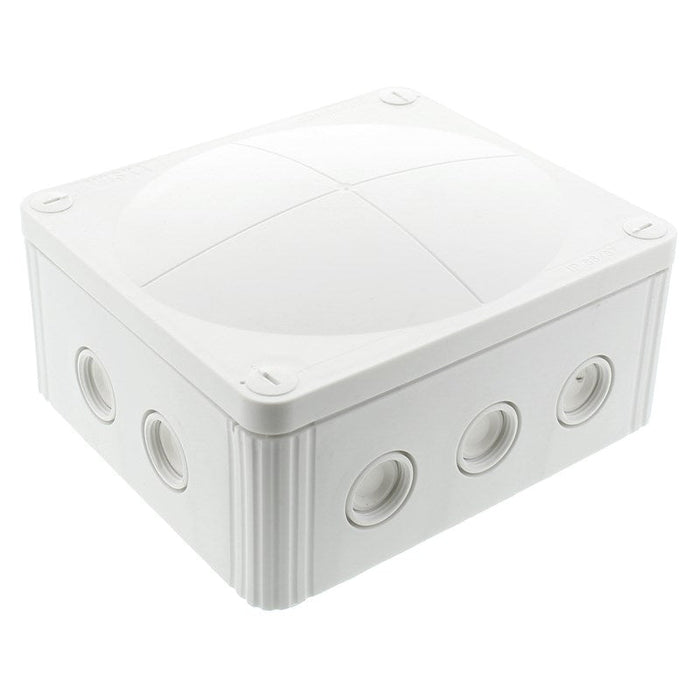

Wiska 10101461 COMBI 1210 Empty Junction Box - White
SKU 10101461
Availability:
IN STOCK
Original price
£12.02
-
Original price
£12.02
Original price
£10.02
Exc VAT
£12.02
Inc VAT
£12.02
-
£12.02
Current price
£12.02
£12.02
-
£12.02
Current price
£12.02
Wiska 10101461 COMBI 1210 Empty Junction Box - White
Features
- Type: COMBI 1210/Empty
- Colour: White
- Terminal Type: None
- Material: Polypropylene
- Material sealing gasket: TPE
- Temp. range min: -30 °C
- Temp. range max: 100 °C
- Temperatures during install: -5 °C - 60 °C
- Protection class: IP66 / IP67
- Glow wire test: 750 °C
- Voltage: 690 V
- Rated cross section: 10 mm²
- Fixing: 4 internal openings
- Ø cable diameter min: 3 mm
- Ø cable diameter max: 12 mm
- External dimensions LxWxH: 160 x 140 x 81mm
- ETIM-Classification: EC002600
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
10 M20 threaded membrane entries and M25 knockouts
4 membrane cable entries through rear
4 captive cover screws
Mounting:
With 4 internal openings outside of the sealing area
Data Sheet:
Click Here for Data Sheet
