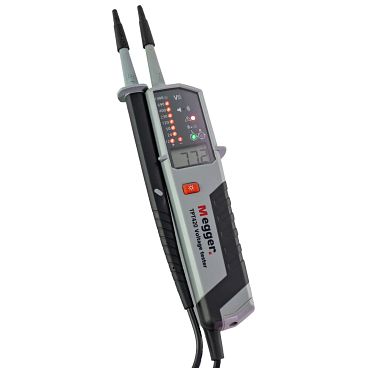

Megger TPT420 LCD/LED 1000V Two-Pole Voltage Tester

Megger TPT420 LCD/LED 1000V Two-Pole Voltage Tester

The Megger TPT420 voltage tester is designed to provide electricians and electrical engineers with an easy-to-use voltage indicating instrument. The meter will continue to warn the operator of dangerous test voltages even when the batteries are exhausted. With both LCD and LED displays, the TPT420 provides both AC and DC voltage measurement - from 12 to 1000 V AC and up to 1500 V DC. In addition, a continuity function within the range 0 to 500 k?, is included and for added safety, continuity and voltage measurements are also accompanied by an acoustic sounder.

Features:

• 1000 V
• IP64 Rated
• AC/DC Voltage tester
• 12...1000 V AC
• 12...1500 V DC
• LED and LCD Display
• Continuity test function with visual and acoustic indication
• Voltage indication with no batteries
• Single pole voltage test
• Phase rotation indication
• Integrated torch light

Specifications:

• Display: 13 LEDs, 4 Digit LCD (0.1V Resolution)
• Voltage range: LED: ±12, 24, 50, 120, 230, 400, 690, 1000 V : LCD: 12 - 1000 V AC/1500 V DC
• Voltage Warning Indication LED: <50 VAC, <120 VDC
• Backlight: Automatic
• Polarity indication: Automatic
• Frequency range: 40 – 400Hz
• Peak current: Is<3.5 mA (@1000 V)
• Single pole test: 100 – 1000 V AC (50/60 Hz)
• Phase Rotation: 120 - 400 V Phase to phase, AC 50/60 Hz
• Continuity Indication: >500 k? + 50%
• Overvoltage category: CAT IV 1000V
• Pollution Degree: 2
• Protection: IP64
• In compliance with: EN 61010, EN 61243-3:2014, DIN VDE 0682-401
• Operating Temperature: -5 to 40°C (Storage:-20 to 70°C)
• Humidity: Max 85% RH
• Altitude: Up to 2000 m
• Power supply: 2 x 1.5V batteries. Type AAA LR03
• Length of cable: Approximately 1.2m
• Dimensions: Approximately 255 (H) x 67 (W) x 30mm (D)
• Weight: Approximately 207g
