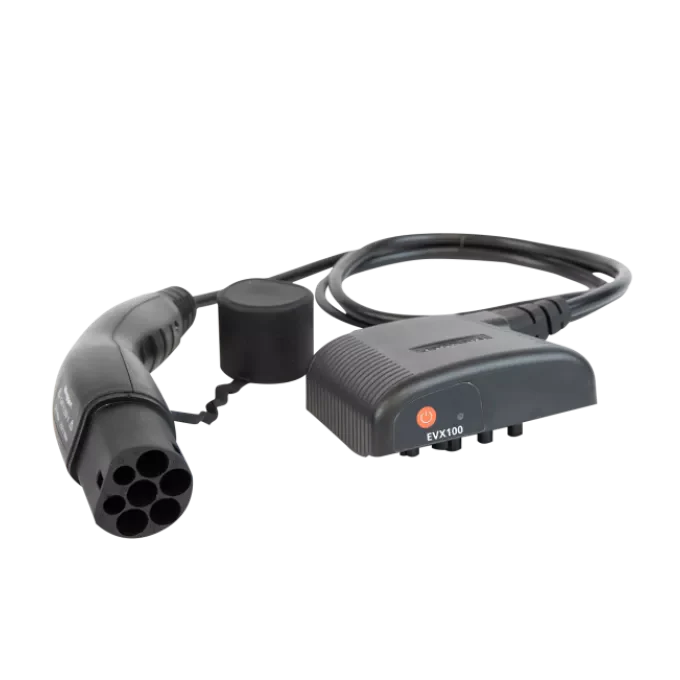

Megger EVX100 Electric Vehicle Charge-Point Test Adaptor

Megger EVX100 Electric Vehicle Charge-Point Test Adaptor

Used with Megger MFT-X1 multifunction installation testers, the EVX100 adaptor provides all the functions needed for automated and manual testing of single- and three-phase Mode 3 electric vehicle charge points rated at up to 22 kW. Unlike other adaptors, the EVX100 mounts directly onto the MFT, which means it provides a fully integrated solution that doesn’t need inconvenient interconnecting cables.

Another unique benefit is that the EVX100 is directly controlled by the MFT-X1, which makes it easier and faster to use. In addition, direct control reduces the possibility of making incorrect test selections. The EVX100 also confirms that the mode set on the charger is correct for the test being performed.

To make testing even more convenient, the EVX100 offers automated testing, which means that you will no longer have to manually cycle the charge point through numerous CP states every time a test trips a protective device such as an RCD or RDC. As protective devices are often fitted in locations at a considerable distance from the charge point, this feature can potentially save a lot of walking and valuable time.

The EVX100 is powered by a high capacity internal battery, which can be recharged quickly via a standard USB-C charging port. This means you won’t need mains cables with various types of plugs. Just two charger connectors – Type 1 and Type 2 – will almost certainly cover all of your testing requirements, with type 2 supplied as standard. And, if you’re a user of CertSuite Installation software, you can produce customised test certificates in real-time with just a couple of clicks.

Features:

• Fully integrated to the current MFT-X1
• Simple operation
• Integrated with MFT-X1 control interface
• Automated EV charger resetting
• Full EV control by the MFT-X1
• CP code reporting
• IP54 compliance
• CAT II 250 V rating
• Carry case included
