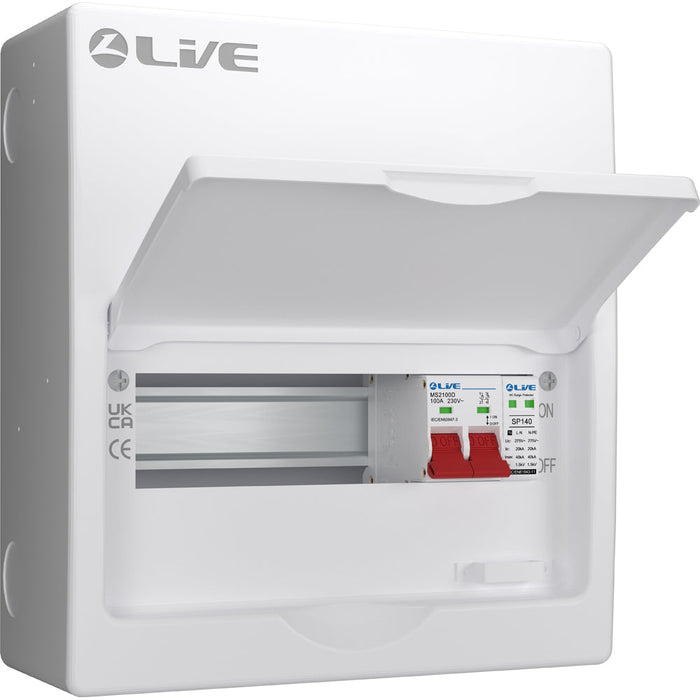

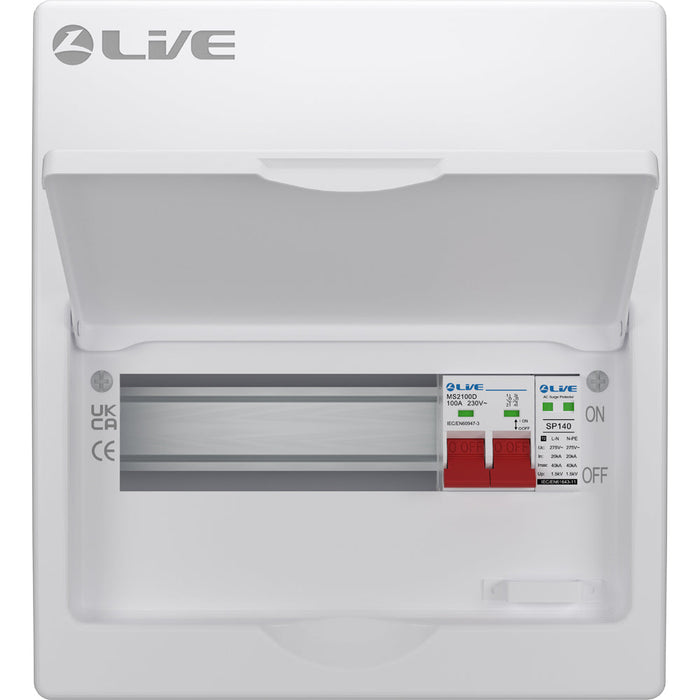

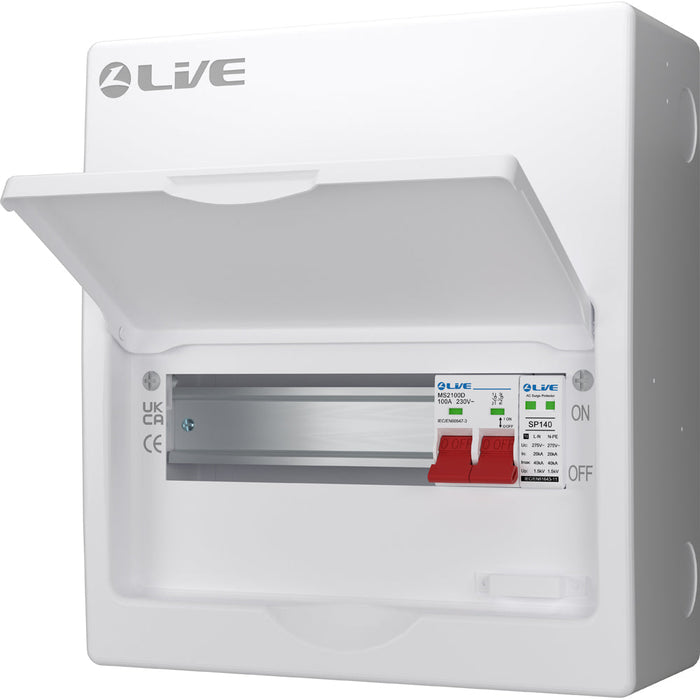

LIVE Electrical LSMC10S-SP 10 Module Metal Clad Consumer Unit c/w 100A Main Switch +20/40kA SPD (7 Usable Way)

LIVE Electrical LSMC10S-SP 10 Module Metal Clad Consumer Unit with 100A Main Switch & 20/40kA Type 2 SPD (7 Usable Ways)

The LIVE Electrical LSMC10S-SP is a premium surface-mounted metal consumer unit designed to deliver dependable circuit protection for domestic and commercial electrical installations. Supplied with a 100A double pole main switch and an integrated 20/40kA Type 2 Surge Protective Device (SPD), it protects electrical systems against transient overvoltages while providing a fast and efficient installation.

Its integrated live and neutral busbar, spacious internal layout and flexible cable entry points help minimise installation time, reduce wiring clutter and provide excellent accessibility for testing, inspection and future maintenance.

Key Features

• 10 module metal clad consumer unit with 7 usable ways
• Supplied with a 100A double pole main switch
• Integrated 20/40kA Type 2 DP Surge Protective Device (SP140 1P+N/1)
• Integrated live and neutral busbar for quicker and simpler installation
• No fly leads for reduced wiring and a cleaner internal layout
• Large, accessible wiring space for efficient cable management
• Flexible cable entry options, including rear cable access
• Supplied with neutral cable, busbar, DIN rail, neutral & earth terminals and cable gland
• Surface-mounted IP40 metal enclosure
• Lockable lid for improved safety and security
• Designed for straightforward testing, servicing and long-term maintenance

Technical Specification

• Manufacturer: LIVE Electrical
• Part Number: LSMC10S-SP
• Consumer Unit Type: Metal Clad Surface Mounted
• Number of Modules: 10
• Usable Ways: 7
• Main Switch: 100A Double Pole
• Surge Protection: 20/40kA Type 2 DP SPD (SP140 1P+N/1)
• IP Rating: IP40
• Dimensions (W × H × D): 244 × 270 × 110mm

What's Included

• Neutral cable
• Integrated busbar
• Neutral and earth terminals
• DIN rail
• Cable gland
• 100A double pole main switch
• 20/40kA Type 2 DP Surge Protective Device
