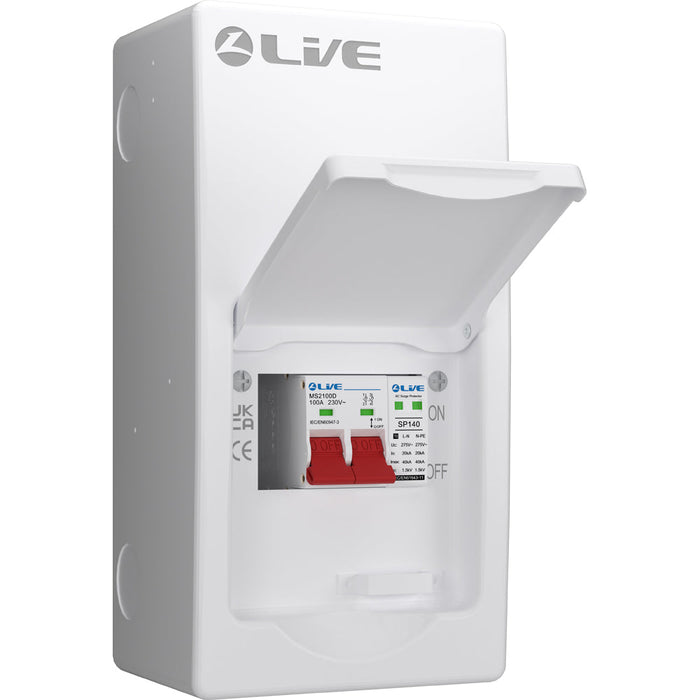

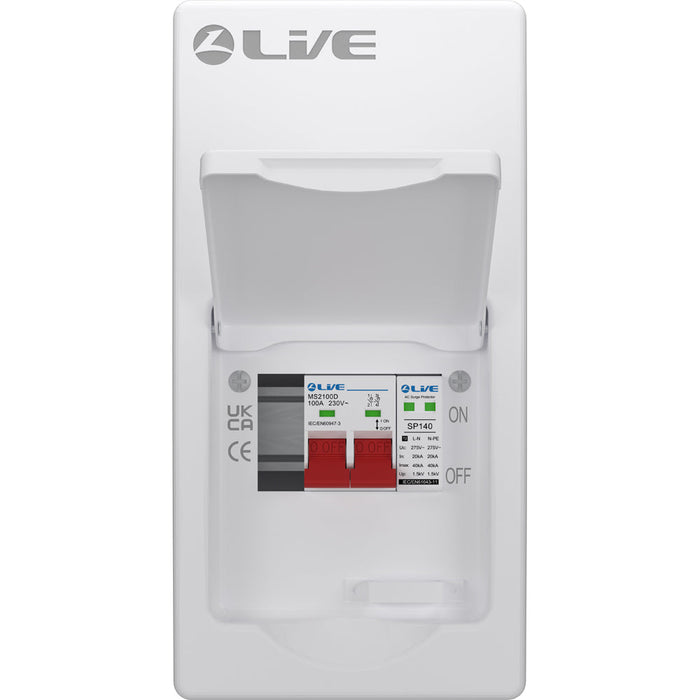

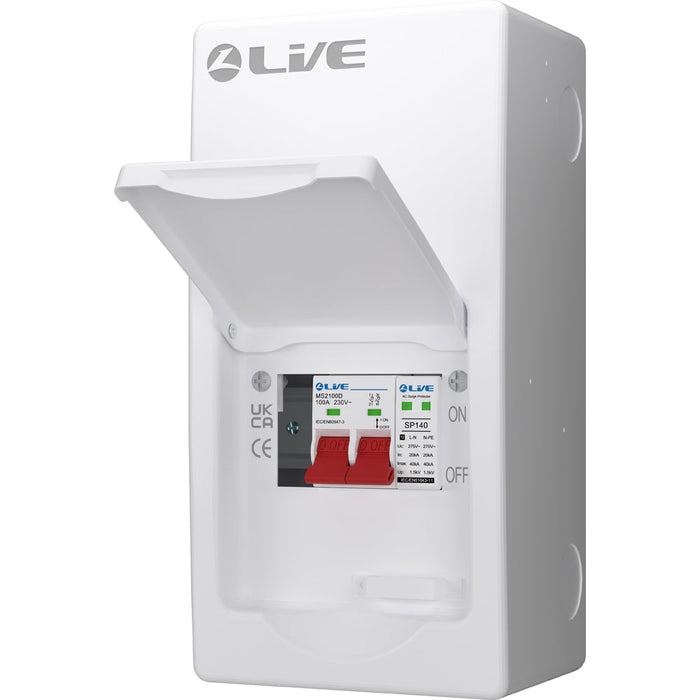

LIVE Electrical LSMC04S-SP 4 Module Metal Clad Consumer Unit c/w 100A Main Switch +20/40kA SPD (1 Usable Way)

LIVE Electrical LSMC04S-SP 4 Module Metal Clad Consumer Unit with 100A Main Switch & 20/40kA Type 2 SPD (1 Usable Way)

The LIVE Electrical LSMC04S-SP is a high-quality surface-mounted metal consumer unit designed to provide reliable circuit protection for residential and light commercial electrical installations. Supplied complete with a 100A double pole main switch and an integrated 20/40kA Type 2 Surge Protective Device (SPD), this compact consumer unit offers enhanced protection against transient overvoltages while simplifying installation.

Featuring an integrated live and neutral busbar, generous wiring space and multiple cable entry points, the enclosure helps reduce installation time and provides a neat, accessible layout for testing and future maintenance.

Key Features

• 4 module metal clad consumer unit with 1 usable way
• Supplied with a 100A double pole main switch
• Integrated 20/40kA Type 2 DP Surge Protective Device (SP140 1P+N/1)
• Integrated live and neutral busbar for quicker installation
• No fly leads for reduced wiring and a cleaner internal layout
• Large, easily accessible wiring space
• Multiple cable entry options including rear access
• Supplied with neutral cable, busbar, DIN rail, neutral & earth terminals and cable gland
• Surface-mounted IP40 metal enclosure
• Lockable lid for added security
• Designed for easier testing, servicing and maintenance

Technical Specification

• Manufacturer: LIVE Electrical
• Part Number: LSMC04S-SP
• Consumer Unit Type: Metal Clad Surface Mounted
• Number of Modules: 4
• Usable Ways: 1
• Main Switch: 100A Double Pole
• Surge Protection: 20/40kA Type 2 DP SPD (SP140 1P+N/1)
• IP Rating: IP40
• Dimensions (W × H × D): 136 × 270 × 110mm
