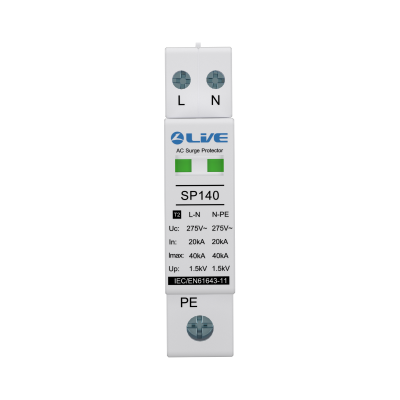

LIVE Electrical SP1401P+N/2 Single Module 20kA/40kA Type 2 Surge Protection Device (SPD)

LIVE Electrical SP1401P+N/2 Single Module 20kA/40kA Type 2 Surge Protection Device (SPD)

Product Description

Surge Protective Device

SPDs are recommended for installations in accordance with 18th edition wiring regulation to protect sensitive and expensive electrical equipment. This range of SPDs are characterised by an 8/20?s current wave, they can prevent the spread of over voltages in electrical installations and protects equipment connected to it. These surge protector must be replaced if the indicator turns red. They comply with BS EN61643-11.

Features:

• High discharge capacity, quick response.
• Green window will change when device is spent and is fitted with terminals for remote indication.
• BSI Standard:BSEN61643-11.
• Type Test Class: Type 2.
• Uc-Max continuous operating voltage:275 VAC.
• Up- Voltage protection level (L-N),(N-PE):1.5 kV.
• In -Nominal discharge current for class ll:20 kA.
• Imax - Maximum discharge current:40 kA.
• lsccr- Short circuit current rating:25 kA.
• Degree of protection:IP20.
• Cable terminal max capacity : L:16mm² N:10mm² PE:10mm².
