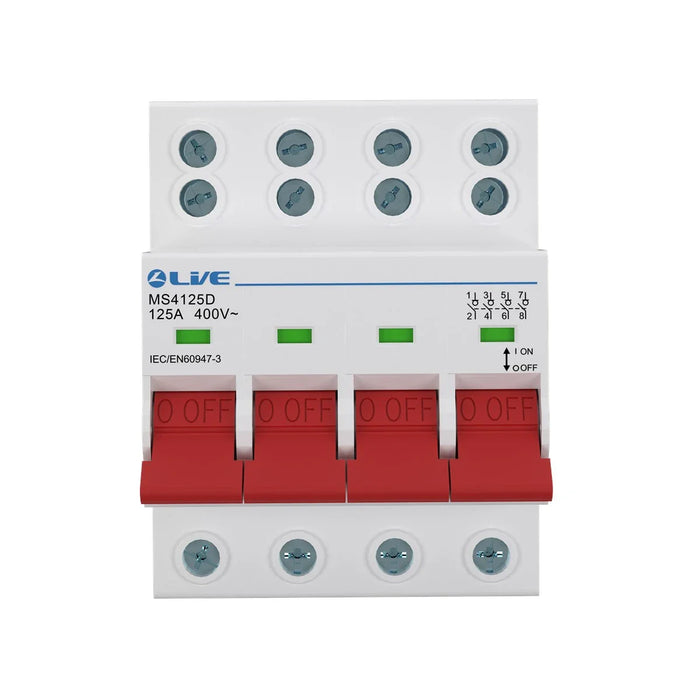

LIVE Electrical MS4125D 4 Pole 125A Main Switch Double Terminal

LIVE Electrical MS4125D 4 Pole 125A Main Switch Double Terminal

The LIVE Electrical MS4125D is a heavy-duty 4 pole 125A main switch designed for safe and reliable isolation in commercial, industrial and three-phase electrical installations. Featuring a double wiring input terminal, this switch simplifies wiring arrangements while providing secure connections without the need for an additional cable clamp.

Key Features

• 4 pole main switch for effective circuit isolation
• 125A rated current capacity
• Double wiring input terminal for simplified installation
• No cable clamp required on the input side
• 230/400V rated operating voltage
• 50mm² terminal capacity
• Compliant with BS IEC/EN 60947-3 standards
• Suitable for commercial, industrial and distribution board applications

Technical Specification

• Product Type: Main Switch – Double Terminal
• Model: MS4125D
• Number of Poles: 4 Pole
• Rated Current: 125A
• Rated Voltage: 230/400V
• Terminal Type: Double Wiring Input Terminal
• Terminal Capacity: 50mm²
• Compliance: BS IEC/EN 60947-3
