Ansell APRIPXM/1 Prism Pro XM 5W/7W IP65 Dimmable LED Fire Rated Downlight 2700K/3000K/4000K/6000K
Ansell APRIPXM/1 Prism Pro XM 5W/7W IP65 Dimmable LED Fire Rated Downlight
The Ansell APRIPXM/1 Prism Pro XM LED Downlight is a versatile, fire-rated lighting solution designed for residential, hospitality, and commercial applications. Featuring a patent-approved modular design with a replaceable light engine and driver, this innovative downlight supports sustainable lighting practices by extending product lifespan and reducing waste.
Offering both power and colour temperature selection, the Prism Pro XM allows installers to choose between 5W or 7W output and four selectable colour temperatures: 2700K, 3000K, 4000K, and 6000K. Its IP65-rated construction makes it suitable for bathrooms and other moisture-prone environments, while the dimmable functionality provides flexible lighting control.
Key Features
- IP65-rated dimmable LED fire-rated downlight
- Selectable wattage options: 5W or 7W
- 4 CCT settings: 2700K, 3000K, 4000K and 6000K
- TM66 2.5 assessed for improved product circularity and sustainability
- Patent-approved modular design with replaceable LED engine and driver
- Fast-fit plug and detachable connector for rapid installation
- Lever terminal connections for easy wiring
- Low-profile design suitable for shallow ceiling voids
- Wide 60° beam angle for enhanced light distribution
- Ideal for residential, hospitality and commercial environments
Building Regulation Compliance
The Prism Pro XM has been extensively tested to comply with UK Building Regulations and is suitable for installation in a wide range of ceiling constructions.
- Fire rated for 30, 60 and 90-minute ceiling types (Part B)
- Tested for moisture resistance compliance (Part C)
- Tested for acoustic performance compliance (Part E)
- Tested for energy efficiency compliance (Part L)
Technical Specification
| Product Code | APRIPXM/1 |
| Power Consumption | 5W / 7W Selectable |
| Lumens Delivered | 640lm - 820lm (4000K) |
| Efficiency | Up to 135lm/W |
| Colour Temperatures | 2700K / 3000K / 4000K / 6000K |
| CRI | Ra >80 |
| Beam Angle | 60° |
| Input Voltage | 220-240V AC |
| Operating Temperature | -10°C to +35°C |
| IP Rating | IP65 |
| Height | 63mm |
| Diameter | 88mm |
| Depth | 58.5mm |
| Cut-Out Size | 72mm |
Installation Benefits

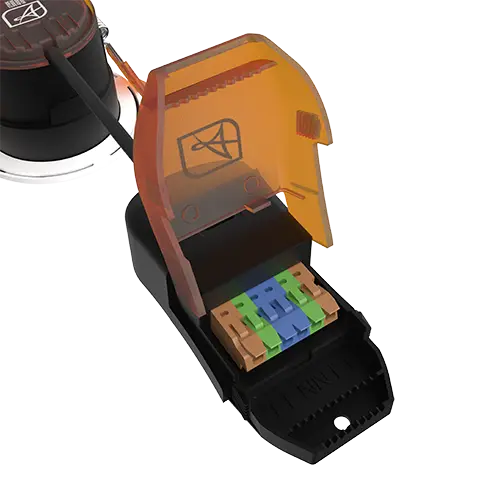

The innovative two-part detachable connector enables first-fix wiring and testing before the downlight is connected, significantly reducing installation time. Combined with the fast-fit plug and lever terminal design, the Prism Pro XM offers a quick, efficient, and hassle-free installation process for electricians and contractors.
