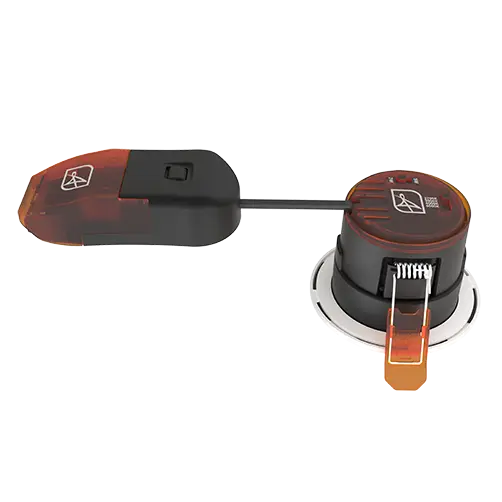

Ansell APRIPXM/1/MP1 Prism Pro XM 5W/7W IP65 Dimmable LED Fire Rated Downlight 2700K/3000K/4000K/6000K - 10 Pack
Ansell APRIPXM/1/MP1 Prism Pro XM 5W/7W IP65 Dimmable LED Fire Rated Downlight - 10 Pack
The Ansell Prism Pro XM APRIPXM/1/MP1 is a convenient 10-pack of premium fire-rated LED downlights, designed for residential, hospitality, and commercial lighting projects. Combining sustainability, performance and installation flexibility, each downlight features a patent-approved modular design with a replaceable LED engine and driver, helping to reduce waste and extend product life.
With selectable 5W or 7W power output and four colour temperature options including 2700K, 3000K, 4000K and 6000K, this versatile downlight allows installers to tailor lighting levels and ambience to suit any environment. The IP65-rated construction provides protection against moisture and dust, making it suitable for bathrooms, kitchens and other demanding indoor applications.
Key Features

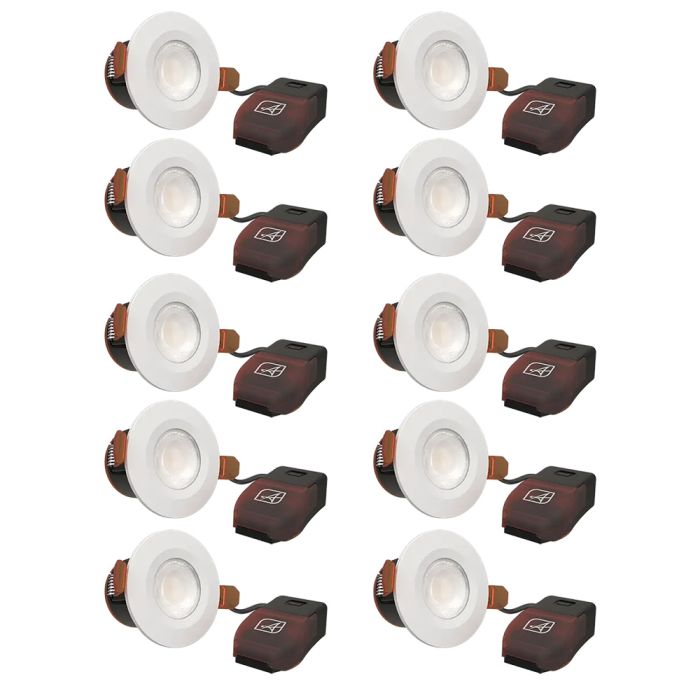

- Pack of 10 IP65-rated dimmable LED fire-rated downlights

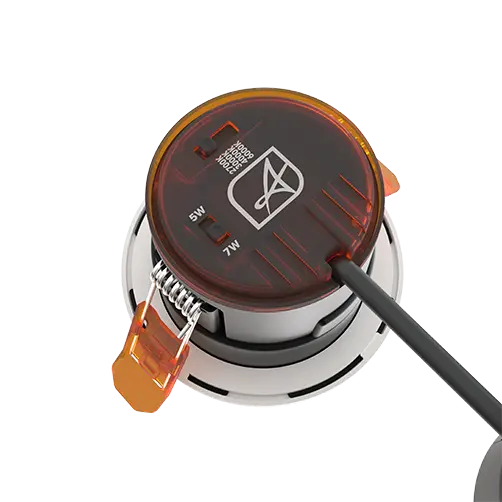

- Selectable wattage settings: 5W or 7W
- 4 selectable colour temperatures: 2700K, 3000K, 4000K and 6000K
- TM66 2.5 assessed for enhanced sustainability and circular product design
- Patent-approved modular construction with replaceable LED engine and driver
- Detachable connector system for quicker installation and maintenance
- Fast-fit plug and lever terminal connections for simple wiring
- Low-profile design suitable for shallow ceiling voids
- Wide 60° beam angle for excellent light coverage
- Ideal for residential, hospitality and commercial applications
Building Regulations Compliance
The Prism Pro XM downlight range has been independently tested to ensure compliance with key UK Building Regulations, offering confidence for both installers and specifiers.
- Fire rated for 30, 60 and 90-minute ceiling constructions (Part B)
- Tested for moisture resistance requirements (Part C)
- Tested for acoustic performance requirements (Part E)
- Tested for energy efficiency requirements (Part L)
Technical Specification
| Product Code | APRIPXM/1/MP1 |
| Pack Quantity | 10 Downlights |
| Power Consumption | 5W / 7W Selectable |
| Lumens Delivered | 640lm - 820lm (4000K) |
| Efficiency | Up to 135lm/W |
| Colour Temperatures | 2700K / 3000K / 4000K / 6000K |
| CRI | Ra >80 |
| Beam Angle | 60° |
| Input Voltage | 220-240V AC |
| Operating Temperature | -10°C to +35°C |
| IP Rating | IP65 |
| Height | 63mm |
| Diameter | 88mm |
| Depth | 58.5mm |
| Cut-Out Size | 72mm |
Fast and Efficient Installation

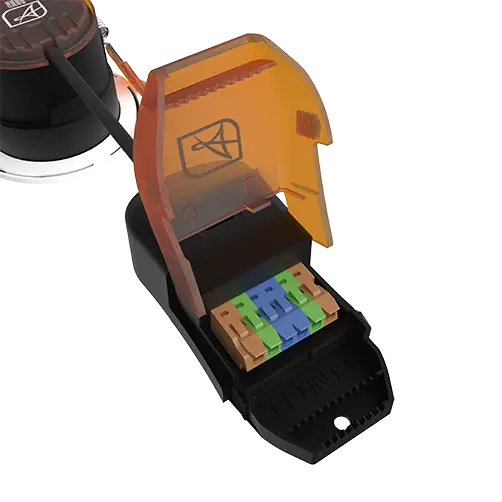

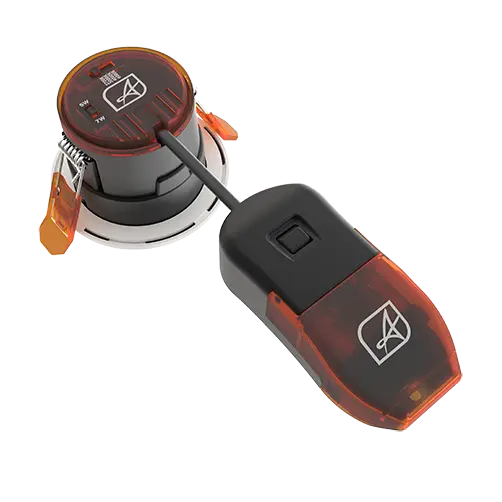

The innovative two-part detachable connector allows electricians to complete first-fix wiring and testing before fitting the luminaire. Once ready, the downlight simply plugs into the pre-installed connector, reducing installation time and simplifying future maintenance.
The low-profile housing and fast-fit lever terminal connections make the Prism Pro XM particularly suitable for modern construction projects where ceiling void space may be limited.
