Product Overview

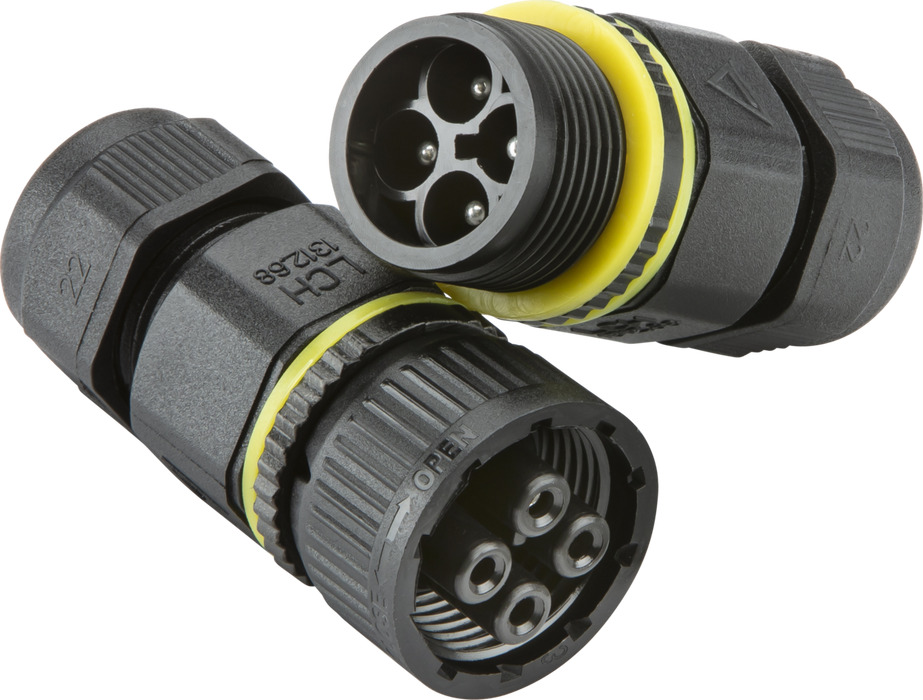

The Knightsbridge JB0012 IP68 16A 4-Pin Plug and Socket Cable Connector delivers reliable performance in tough and demanding environments. Designed for maximum durability and protection, this weatherproof connector ensures secure power delivery for heavy-duty and industrial applications where reliability is critical.

Whether you’re powering outdoor lighting, construction tools, marine systems, or automation equipment, the JB0012 offers both safety and convenience, even in harsh weather or submerged conditions.

Key Features

• IP68 rated – fully dust-tight and waterproof, capable of long-term immersion; perfect for outdoor, underground, or marine use.
• 16A current rating supports high-power applications including industrial lighting, machinery, and heavy tools.
• 4-pin configuration offers flexibility for three-phase power plus earth or power and control signal use, ideal for automation or emergency lighting systems.
• Quick and safe plug and socket design allows easy disconnection in wet or dirty conditions.
• Secure screw terminals and a robust housing ensure long-lasting, vibration-resistant connections.
• Ideal for construction sites, event setups, EV charging stations, agricultural equipment, outdoor or underwater lighting systems, and other demanding environments.

Technical Specifications

• Protection Rating: IP68 (@2bar)
• Rated Current: 16A
• Rated Voltage: 450V
• PTI: 250
• Connector Type: 4-pin, 2-way
• Construction: Polycarbonate casing and PA66 cable glands with silicone seals
• Terminals: Silver-plated copper screw fix
• Cable Diameter Range: 5mm – 12mm
• Cable Gland Size: M22
• Compatible Cable Type: H07RN-F 3G 0.75mm² – 2.5mm²
• Compliance: EN 62444

Technical Documentation

For more details, specifications, and installation guidance, please refer to the official Knightsbridge data sheet below.

Click here to view the JB0012 Data Sheet
