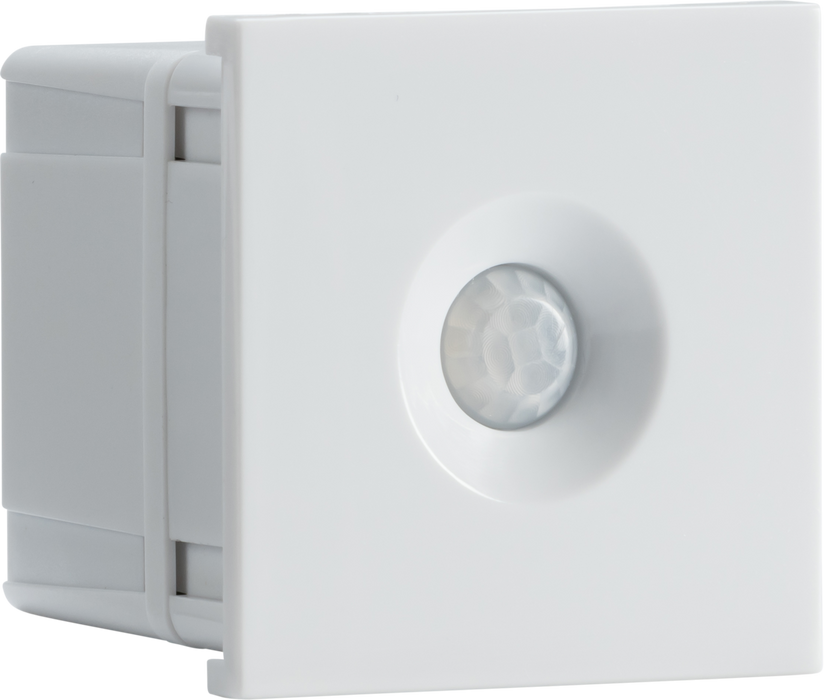

Knightsbridge NETPIRWH 120° PIR Sensor Module 50x50mm - White

Knightsbridge NETPIRWH 120° PIR Sensor Module 50 x 50mm – White

The Knightsbridge NETPIRWH 120° PIR Sensor Module is a compact and efficient motion sensor designed for seamless integration into euro modular faceplate systems. This passive infrared (PIR) sensor detects motion within a 120° field and up to 5m range, automatically switching connected lighting on or off based on movement. Ideal for both residential and commercial use, it provides an energy-efficient and hands-free lighting solution while maintaining a clean, modern aesthetic with its white finish.

Key Features

• Voltage: 220–240V AC, 50Hz
• Load capacity: Max. 100W LED / 200W incandescent
• Operation: Passive infrared (PIR)
• Detection angle: 120°
• Detection range: up to 5m
• Preset time delay: 3 minutes
• Lux sensitivity and time operation fixed
• Requires live and neutral wiring
• Designed for 50 x 50mm euro modular frames
• Suitable for 47mm back box

Benefits

• Automatic lighting control: Switches lights on when motion is detected, reducing energy waste.
• Compact and modular: Fits neatly into euro modular systems for flexible installations.
• Hands-free convenience: Ideal for hallways, bathrooms, storage areas, and commercial corridors.
• Energy efficiency: Helps reduce electricity consumption by turning lights off automatically when not in use.
• Modern design: Clean white finish complements a wide range of interior styles.

Note: Shown mounted in a NET2GWH frame (not included).

Data Sheet:

Click Here for Data Sheet
