Knightsbridge NETPIRBK 120° PIR Sensor Module 50x50mm - Black

Knightsbridge NETPIRBK 120° PIR Sensor Module 50 x 50mm – Black

The Knightsbridge NETPIRBK 120° PIR Sensor Module delivers automatic and energy-efficient lighting control in a sleek, modern design. This passive infrared (PIR) sensor detects motion within a 120° field and up to 5m range, automatically activating lights when movement is detected and switching them off after a set period of inactivity. Designed for euro modular faceplate systems, its elegant black finish makes it ideal for contemporary residential, commercial, or hospitality settings.

Key Features

• Voltage: 220–240V AC, 50Hz
• Load rating: Max. 100W LED / 200W incandescent
• Operation: Passive infrared (PIR)
• Detection field: 120°
• Detection range: up to 5m
• Preset time delay: 3 minutes
• Lux sensitivity and time operation fixed
• Requires live and neutral wiring
• Designed for 50 x 50mm euro modular frames
• Suitable for 47mm back box

Benefits

• Automatic lighting control: Turns lights on when motion is detected, reducing wasted energy.
• Modern, hands-free convenience: Perfect for hallways, bathrooms, offices, and public areas.
• Sleek black finish: Complements contemporary interiors and blends seamlessly with other modular fittings.
• Compact modular design: Easily integrates with euro modular faceplates for custom installations.
• Energy-efficient operation: Fixed lux and timing settings help maintain consistent performance.

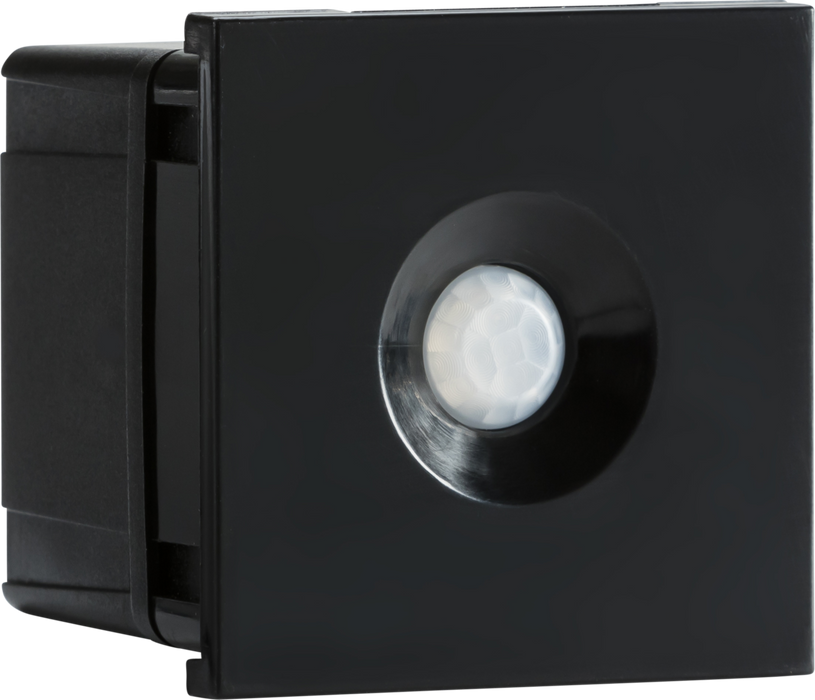

Note: Shown mounted in an SF2GMB frame (not included).

Data Sheet:

Click Here for Data Sheet
