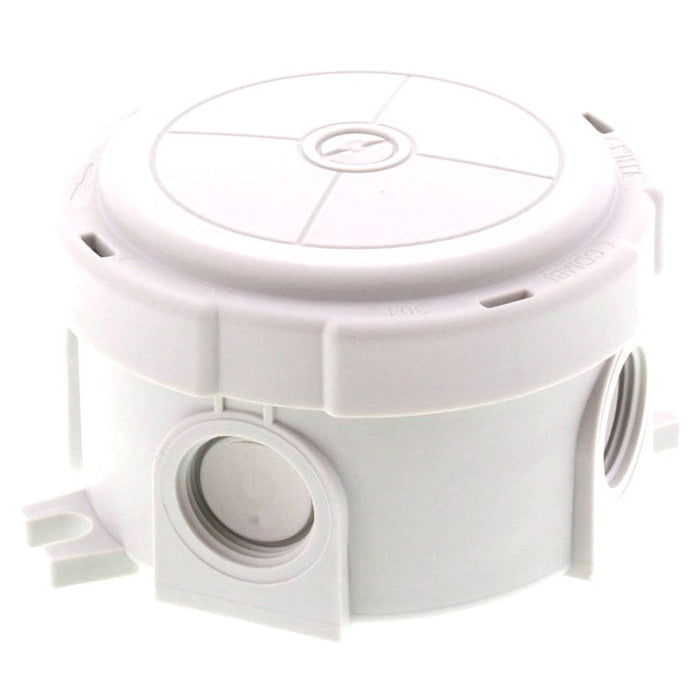

Wiska 10110631 COMBI 304 Circular Empty Junction Box - White

Wiska 10110631 COMBI 304 Circular Empty Junction Box - White

Features

• Type: COMBI 304/Empty
• Colour: White
• Terminal Type: None
• Material: Polypropylene
• Material sealing gasket: TPE
• Temp. range min: -30 °C
• Temp. range max: 100 °C
• Temperatures during install: -5 °C - 60 °C
• Protection class: IP66 / IP67
• Glow wire test: 750 °C
• Voltage: 400 V
• Rated cross section: 2,5 mm²
• Fixing: 2 external mounting feet
• Ø cable diameter min: 3 mm
• Ø cable diameter max: 12 mm
• External dimensions LxWxH: Ø 82 x 57mm
• ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
4 M20 threaded membrane entries
