Wiska 10110403 COMBI 308 Junction Box + 3x 3-pole WAGO 221-413 Connectors - Light Grey

SKU 10110403
Availability:
IN STOCK
Original price £6.24 - Original price £6.24
Original price
£5.20 Exc VAT
£6.24 Inc VAT
£6.24 - £6.24
Current price £6.24
£6.24 - £6.24
Current price £6.24
Request a quote
Read More...

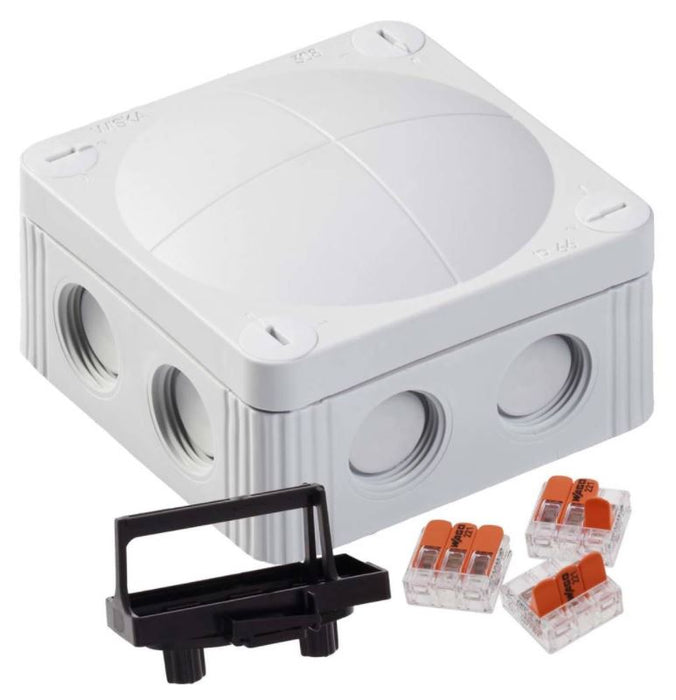

Wiska 10110403 COMBI 308 Junction Box + 3x 3-pole WAGO 221-413 Connectors - Light Grey

Features

  • Type: COMBI 308/3-221-413
  • Colour: Light Grey
  • Terminal Type: 3x 3-pole WAGO 221
  • Material: Polypropylene
  • Material sealing gasket: TPE
  • Temp. range min: -30 °C
  • Temp. range max: 100 °C
  • Temperatures during install: -5 °C - 60 °C
  • Protection class: IP66 / IP67
  • Glow wire test: 750 °C
  • Voltage: 400 V
  • Rated cross section: 4 mm²
  • Fixing: 4 internal openings
  • Ø cable diameter min: 3 mm
  • Ø cable diameter max: 12 mm
  • External dimensions LxWxH: 85 x 85 x 51mm
  • ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
8 M20 threaded membrane entries
4 captive cover screws
including mounting clip
including terminal carrier on quick mounting plate mounted + 3x WAGO 221-413 enclosed loose

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Data Sheet:

Click Here for Data Sheet
