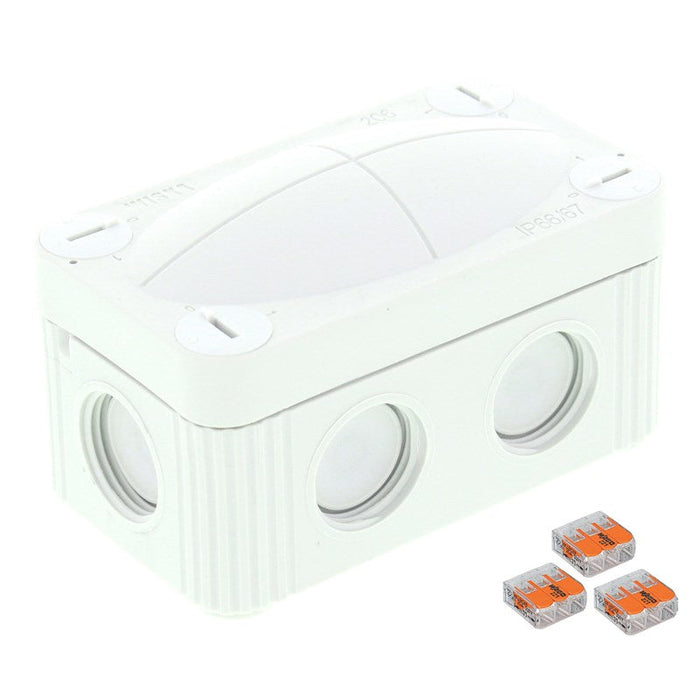

Wiska 10109902 COMBI 206 Junction Box + 3x 3-pole WAGO 221-413 Connectors - White

SKU 10109902
Availability:
IN STOCK
Original price £5.79 - Original price £5.79
Original price
£4.83 Exc VAT
£5.79 Inc VAT
£5.79 - £5.79
Current price £5.79
£5.79 - £5.79
Current price £5.79
Request a quote
Read More...

Wiska 10109902 COMBI 206 Junction Box + 3x 3-pole WAGO 221-413 Connectors - White

Features

  • Type: COMBI 206/3-221-413
  • Colour: White
  • Terminal Type: 3x 3-pole WAGO 221
  • Material: Polypropylene
  • Material sealing gasket: TPE
  • Temp. range min: -30 °C
  • Temp. range max: 100 °C
  • Temperatures during install: -5 °C - 60 °C
  • Protection class: IP66 / IP67
  • Glow wire test: 750 °C
  • Voltage: 400 V
  • Rated cross section: 1,5 mm²
  • Terminals/poles: 4 mm²
  • Fixing: 4 internal openings
  • Ø cable diameter min: 3 mm
  • Ø cable diameter max: 12 mm
  • External dimensions LxWxH: 85 x 49 x 51mm
  • ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
6 M20 threaded membrane entries
2 membrane cable entries through rear
4 captive cover screws
including 3x WAGO 221-413 enclosed loose

Fixing:
With 4 internal openings outside of the sealing area

Data Sheet:

Click Here for Data Sheet
