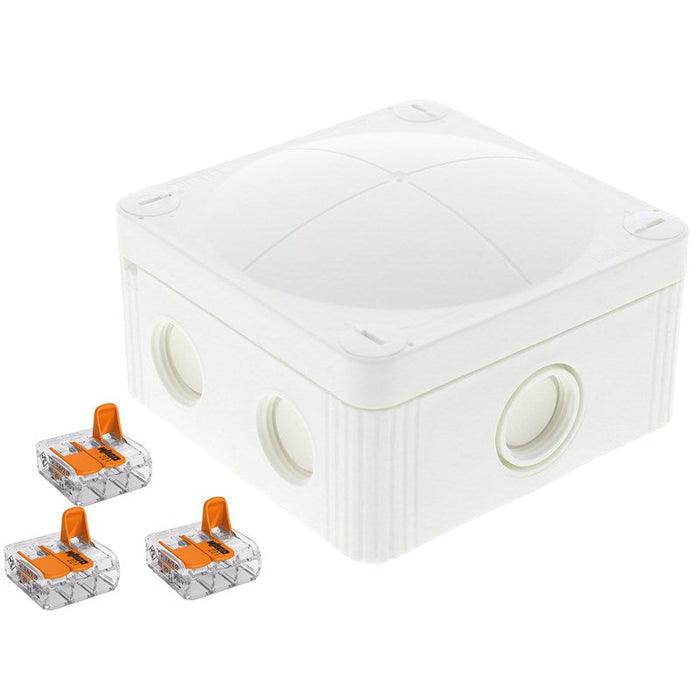

Wiska 10109675 COMBI 407 Junction Box + 3x 3-pole WAGO 221-413 Connectors - White

SKU 10109675
Availability:
Dispatch in 2-3 Days
Original price £7.01 - Original price £7.01
Original price
£5.84 Exc VAT
£7.01 Inc VAT
£7.01 - £7.01
Current price £7.01
£7.01 - £7.01
Current price £7.01
Request a quote
Read More...

Wiska 10109675 COMBI 407 Junction Box + 3x 3-pole WAGO 221-413 Connectors - White

Features

  • Type: COMBI 407/3-221-413
  • Colour: White
  • Terminal Type: 3 x 3-pole WAGO 221
  • Material: Polypropylene
  • Material sealing gasket: TPE
  • Temp. range min: -30 °C
  • Temp. range max: 100 °C
  • Temperatures during install: -5 °C - 60 °C
  • Protection class: IP66 / IP67
  • Glow wire test: 750 °C
  • Voltage: 690 V
  • Rated current / A (Terminal): 24 A
  • Rated cross section: 4 mm²
  • Terminals/poles: 4 mm²
  • Fixing: 4 internal openings
  • Ø cable diameter min: 3 mm
  • Ø cable diameter max: 12 mm
  • External dimensions LxWxH: 95 x 95 x 60mm
  • ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
2 membrane cable entries through rear
4 captive cover screws
including mounting clip
including terminal carrier on quick mounting plate mounted +
3x WAGO 221-413 enclosed loose

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Data Sheet:

Click Here for Data Sheet
