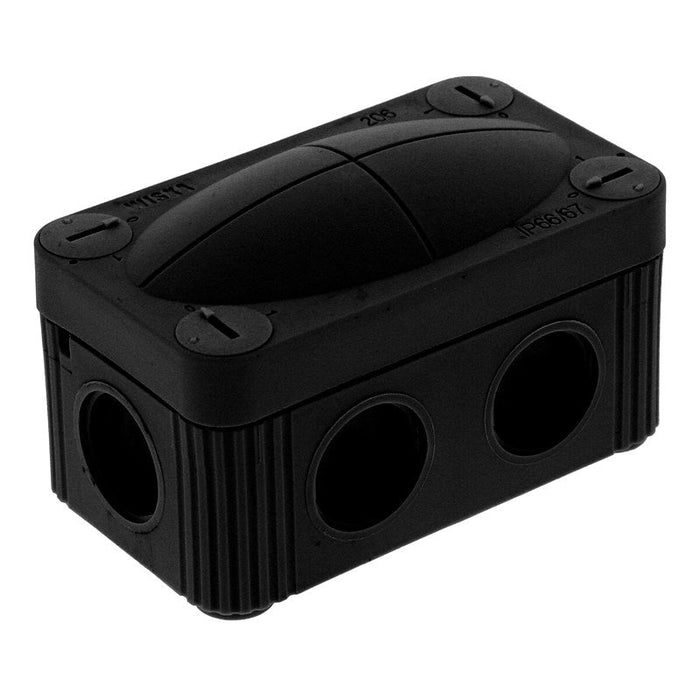

Wiska 10109571 COMBI 206 Empty Junction Box - Black

SKU 10109571
Availability:
IN STOCK
Original price £3.82 - Original price £3.82
Original price
£3.18 Exc VAT
£3.82 Inc VAT
£3.82 - £3.82
Current price £3.82
£3.82 - £3.82
Current price £3.82
Request a quote
Read More...

Wiska 10109571 COMBI 206 Empty Junction Box - Black

Features

  • Type: COMBI 206/Empty
  • Colour: Black
  • Terminal Type: None
  • Material: Polypropylene
  • Material sealing gasket: TPE
  • Temp. range min: -30 °C
  • Temp. range max: 100 °C
  • Temperatures during install: -5 °C - 60 °C
  • Protection class: IP66 / IP67
  • Glow wire test: 750 °C
  • Voltage: 400 V
  • Rated cross section: 1,5 mm²
  • Fixing: 4 internal openings
  • Ø cable diameter min: 3 mm
  • Ø cable diameter max: 12 mm
  • External dimensions LxWxH: 85 x 49 x 51mm
  • ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
6 M20 threaded membrane entries
2 membrane cable entries through rear
4 captive cover screws

Fixing:
With 4 internal openings outside of the sealing area

Data Sheet:

Click Here for Data Sheet
