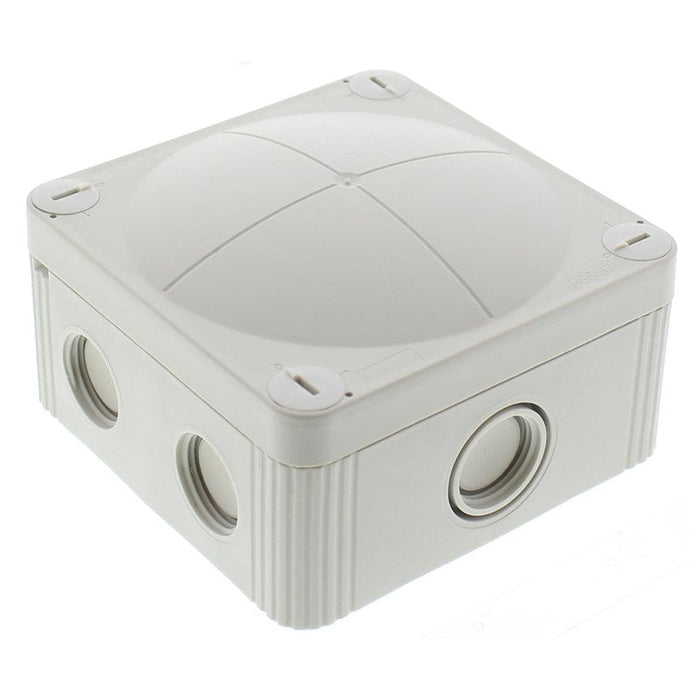

Wiska 10106191 COMBI 407/4SDKF5 Junction Box + 4x 5 Way Push-In Terminal Block - Light Grey

SKU 10106191
Availability:
Dispatch in 2-3 Days
Original price £10.04 - Original price £10.04
Original price
£8.37 Exc VAT
£10.04 Inc VAT
£10.04 - £10.04
Current price £10.04
£10.04 - £10.04
Current price £10.04
Request a quote
Read More...

Wiska 10106191 COMBI 407/4SDKF5 Junction Box + 4x 5 Way Push-In Terminal Block - Light Grey

Features

  • Type: COMBI 407/4SDKF5
  • Colour: Light Grey
  • Terminal Type: 4x SDKF
  • Material: Polypropylene
  • Material sealing gasket: TPE
  • Temp. range min: -30 °C
  • Temp. range max: 100 °C
  • Temperatures during install: -5 °C - 60 °C
  • Protection class: IP66 / IP67
  • Glow wire test: 750 °C
  • Voltage: 690 V
  • Rated current / A (Terminal): 24 A
  • Rated cross section: 4 mm²
  • Terminals/poles: 2,5 mm²
  • Fixing: 4 internal openings
  • Ø cable diameter min: 3 mm
  • Ø cable diameter max: 12 mm
  • External dimensions LxWxH: 95 x 95 x 60mm
  • ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
2 membrane cable entries through rear
4 captive cover screws
including mounting clip
with terminal block consisting of:
4 screwless box terminal 5-poles, flexible

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Data Sheet:

Click Here for Data Sheet
