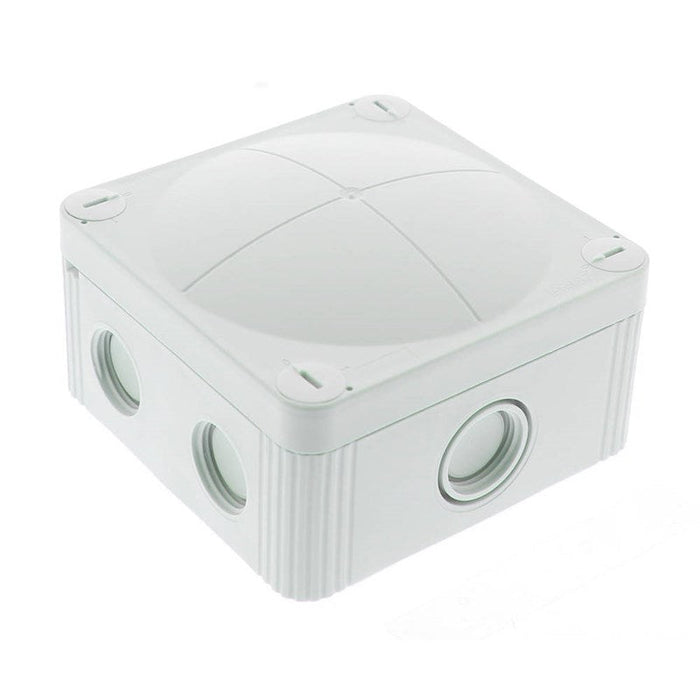

Wiska 10105595 COMBI 407 Empty Junction Box - Light Grey
SKU 10105595
Availability:
Dispatch in 2-3 Days
Original price
£6.29
-
Original price
£6.29
Original price
£5.24
Exc VAT
£6.29
Inc VAT
£6.29
-
£6.29
Current price
£6.29
£6.29
-
£6.29
Current price
£6.29
Wiska 10105595 COMBI 407 Empty Junction Box - Light Grey
Features
- Type: COMBI 407/Empty
- Colour: Light Grey
- Terminal Type: None
- Material: Polypropylene
- Material sealing gasket: TPE
- Temp. range min: -30 °C
- Temp. range max: 100 °C
- Temperatures during install: -5 °C - 60 °C
- Protection class: IP66 / IP67
- Glow wire test: 750 °C
- Voltage: 690 V
- Rated cross section: 4 mm²
- Fixing: 4 internal openings
- Ø cable diameter min: 3 mm
- Ø cable diameter max: 12 mm
- External dimensions LxWxH: 95 x 95 x 60mm
- ETIM-Classification: EC002600
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
2 membrane cable entries through rear
4 captive cover screws
including mounting clip
Fixing:
With mounting clip or 4 internal openings outside of the sealing area
Data Sheet:
Click Here for Data Sheet
