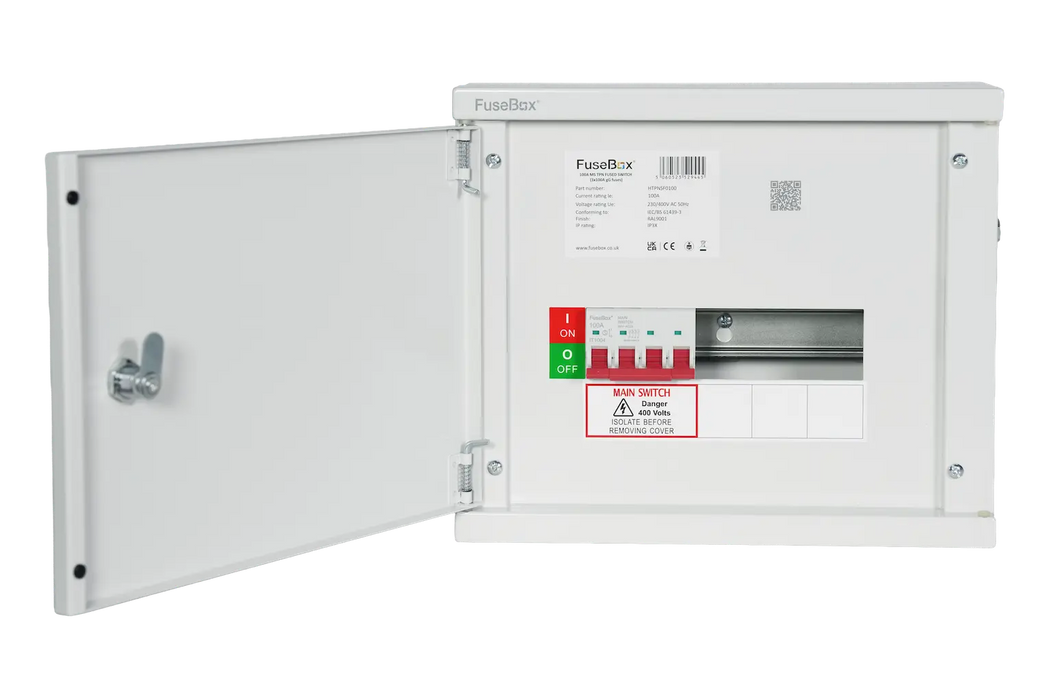

FuseBox HTPNSF0100 100A Horizontal TPN Fused Switch (3X100A gG Fuses)
FuseBox HTPNSF0100 100A Horizontal TPN Fused Switch with 3 x 100A gG Fuses
Product Description
The FuseBox HTPNSF0100 100A Horizontal TPN Fused Switch provides a compact three-phase power distribution solution for installations where vertical wall space is limited. Designed around FuseBox's low-profile horizontal format, the enclosure measures just 295mm high, making it suitable for electrical cupboards, commercial utility areas, industrial environments and other space-restricted applications.
The unit is supplied prepopulated with 3 x 100A gG fuses and features a 100A main switch rating. Its contractor-friendly design provides a spacious internal layout for straightforward cable routing, wiring and termination, while the fixed horizontal busbar and accessible internal components help simplify installation and maintenance.
Manufactured from robust 1.2mm steel with a RAL9001 powder-coated finish, the HTPNSF0100 features top and bottom gland plates for flexible cable entry. A reversible door and coin-slot locking mechanism provide convenient access while allowing the enclosure to be configured to suit the installation.
Key Features
- 100A horizontal TPN fused switch
- Supplied prepopulated with 3 x 100A gG fuses
- Compact 295mm-high horizontal design for restricted spaces
- 100A main switch rating
- Fixed horizontal fork-type busbar
- Spacious internal layout for easier cable routing and termination
- Removable and raised DIN rail for improved wiring access
- Aligned earth and neutral bars for faster and tidier wiring
- Coin-slot door lock for secure and convenient access
- Top and bottom gland plates for flexible cable entry
- No knockouts for greater flexibility when glanding
- Reversible door can be fitted to either side
- Easily removable devices
- Robust 1.2mm steel enclosure
- Surface-mounted installation
- IP3X rated enclosure
- 16kA short-circuit rating
Technical Specifications
- Manufacturer: FuseBox
- Product Code: HTPNSF0100
- Technical Part Number: EHTPNSF0100
- Configuration: Prepopulated
- Fuses Supplied: 3 x 100A gG
- Main Switch Rating: 100A
- Rated Voltage: 400V
- Frequency: 50Hz
- Short-Circuit Rating: 16kA
- Busbar Type: Fork
- IP Rating: IP3X
- Mounting Type: Surface
- Material: Steel
- Enclosure Thickness: 1.2mm
- Finish: RAL9001 powder coated
- Cable Entry Points: Top and bottom gland plates
- Dimensions (H x W x D): 295 x 348 x 113mm
- Standard: EN 61439-16
