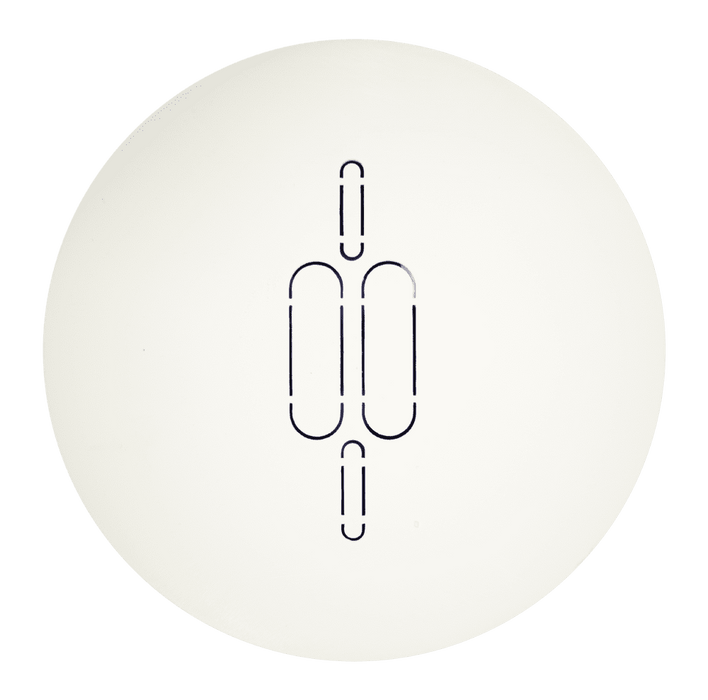

HiSPEC HSSA/INPUTMODULE Mains Switch Input Module

HiSPEC HSSA/INPUTMODULE Mains Switch Input Module

SWITCH INPUT MODULE COMPATIBLE WITH SMOKE, HEAT & CO ALARM

Features

• 10 Year battery backup
• Supplied with cover
• Fits Hispec Fast Fix base
• Pulse/continuous relay operation
• Volt free (dry) contacts
• Connect up to 20 Hispec fire devices per system
• Triggers the alarm system when N/O contacts close
• Can be linked to sprinkler system when changeover contacts are specified.
• Can be linked to EN54 Fire Panelr

Specifications

• Product Life: 10 Years
• Supply Voltage: 230V AC, 50/60 Hz, 50mA
• Backup Battery: 3V Rechargeable Lithium Battery (Sealed)
• Output: Contact IN - SW
• Knock-Outs: 25 x 20mm, 16 x 20mm
• Interconnection: Max 40pcs in 150m
• Operating Temp: -10^/oC to 40^/oC
• Operating Humidity: 15% to 95% Relative Humidity
• Material: ABS
• Product Code: HSSA/INPUTMODULE
