Collingwood HBPIR Area Bay PIR Motion Sensor with Daylight Threshold Switch

SKU HBPIR
Availability:
Dispatch in 1-2 Days
Original price £52.29 - Original price £52.29
Original price
£43.58 Exc VAT
£52.29 Inc VAT
£52.29 - £52.29
Current price £52.29
£52.29 - £52.29
Current price £52.29
Request a quote
Read More...

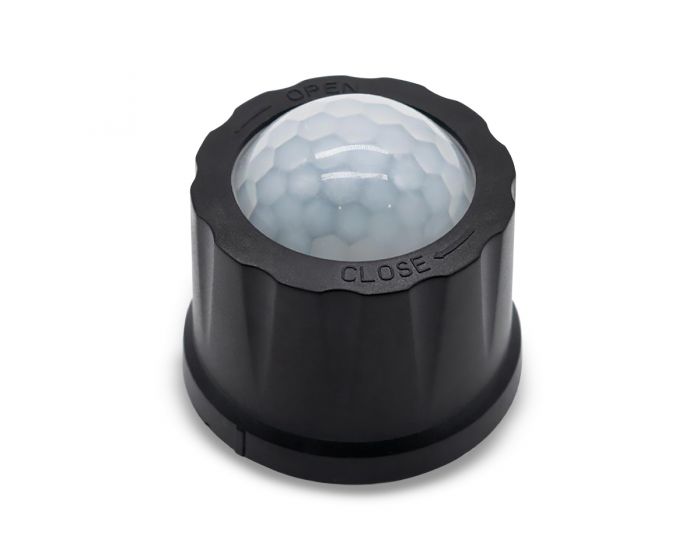

Collingwood HBPIR Area Bay PIR Motion Sensor with Daylight Threshold Switch

Product Description

Passive infra-red (PIR) motion sensor with daylight threshold switch for use with the Area Bay. IP65 Rated.

Quick and easy to install, the sensor plugs into the centre of the luminaire using the Zhaga socket for a typical installation height 8-13m.

Hold Time:

  • Default is 5 seconds.
  • Options - 30s/1min/3min/5min/10min/20min/30min.

Stand-by Dimming Level

  • Default is 10%.
  • Options - 20%/30%/50%.

Daylight Threshold

  • Default is 'disable'.
  • Options
    • 2Lux/10Lux/30Lux/50lux.
    • 120Lux/200Lux/250Lux.
    • 300Lux/350Lux/400Lux.

Stand-by Period

  • Default is 0 seconds.
  • Options - 10s/30s/1min/5min/10min/30min
Features & Benefits
  • Plugs into the centre of the Area Bay luminaire using the Zhaga socket
  • Typical installation height 8-13m
  • Hold time Default is 5 seconds Options - 30s/1min/3min/5min/10min/20min/30min
  • Stand-by dimming level Default is 10% Options - 20%/30%/50%
  • Stand-by period Default is 0 seconds Options - 10s/30s/1min/5min/10min/30min
  • Daylight threshold Default is 'disable' Options - 2Lux/10Lux/30Lux/50lux 120Lux/200Lux/250Lux 300Lux/350Lux/400Lux

Data Sheet:

Click Here for Data Sheet

Instruction Manual:

Click Here for Instruction Manual
