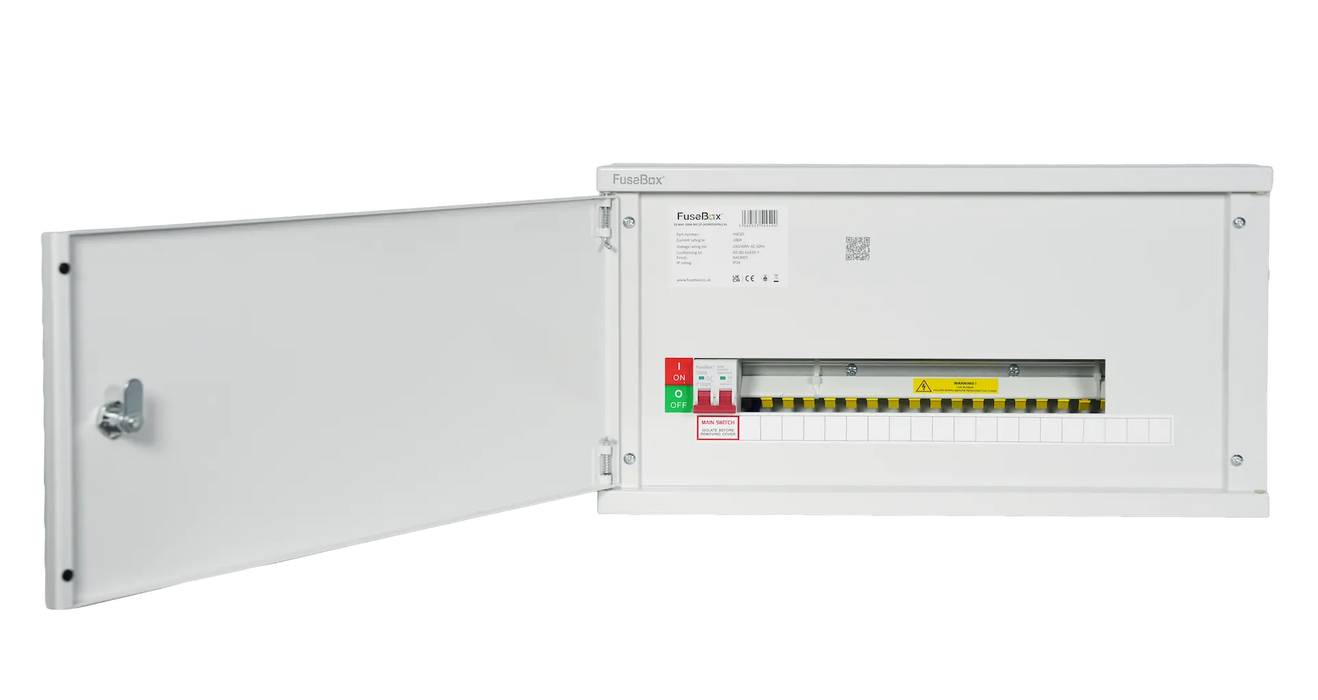

FuseBox HSP20 20 Way Horizontal SPN Distribution Board with 100A 2P Main Switch
FuseBox HSP20 20 Way Horizontal SPN Distribution Board with 100A 2P Main Switch
Product Description
The FuseBox HSP20 20 Way Horizontal SPN Distribution Board is a space-efficient single-phase power distribution solution designed for installations where available wall space is restricted. Its horizontal configuration makes it ideal for electrical cupboards, commercial utility areas and other space-limited locations where fitting a conventional distribution board may be difficult.
Providing 20 usable ways, the HSP20 is supplied with a 100A 2-pole main switch and features a fixed horizontal fork-type busbar. Its spacious internal layout provides ample room for cable routing, wiring and termination, while the removable raised DIN rail and aligned earth and neutral bars improve accessibility for a neat and efficient installation.
Manufactured from robust 1.2mm steel with a durable RAL9001 powder-coated finish, the HSP20 features top and bottom gland plates for flexible cable entry. The reversible door can be fitted to either side to suit the installation, while the coin-slot door lock provides secure and convenient access.
Key Features
- 20-way horizontal SPN distribution board
- 20 usable ways
- Supplied with 100A 2-pole main switch
- Horizontal design for space-restricted installations
- Fixed horizontal fork-type busbar
- Spacious internal layout for easier cable routing and termination
- Removable and raised DIN rail for improved wiring access
- Aligned earth and neutral bars for faster and tidier wiring
- Coin-slot door lock for secure and convenient access
- Top and bottom gland plates for flexible cable entry
- No knockouts for greater flexibility when glanding
- Reversible door can be fitted to either side
- Easily removable devices
- Robust 1.2mm steel enclosure
- Surface-mounted installation
- IP3X rated enclosure
- 16kA short-circuit rating
Technical Specifications
- Manufacturer: FuseBox
- Part Number: HSP20
- Distribution Type: SPN (Single Phase and Neutral)
- Usable Ways: 20
- Main Switch Rating: 100A
- Main Switch: 2 Pole
- Rated Voltage: 400V
- Frequency: 50Hz
- Short-Circuit Rating: 16kA
- Busbar Type: Fork
- IP Rating: IP3X
- Mounting Type: Surface
- Material: Steel
- Enclosure Thickness: 1.2mm
- Finish: RAL9001 powder coated
- Cable Entry Points: Top and bottom gland plates
- Dimensions (H x W x D): 550 x 295 x 113mm
- Standard: EN 61439-5
