Product Description

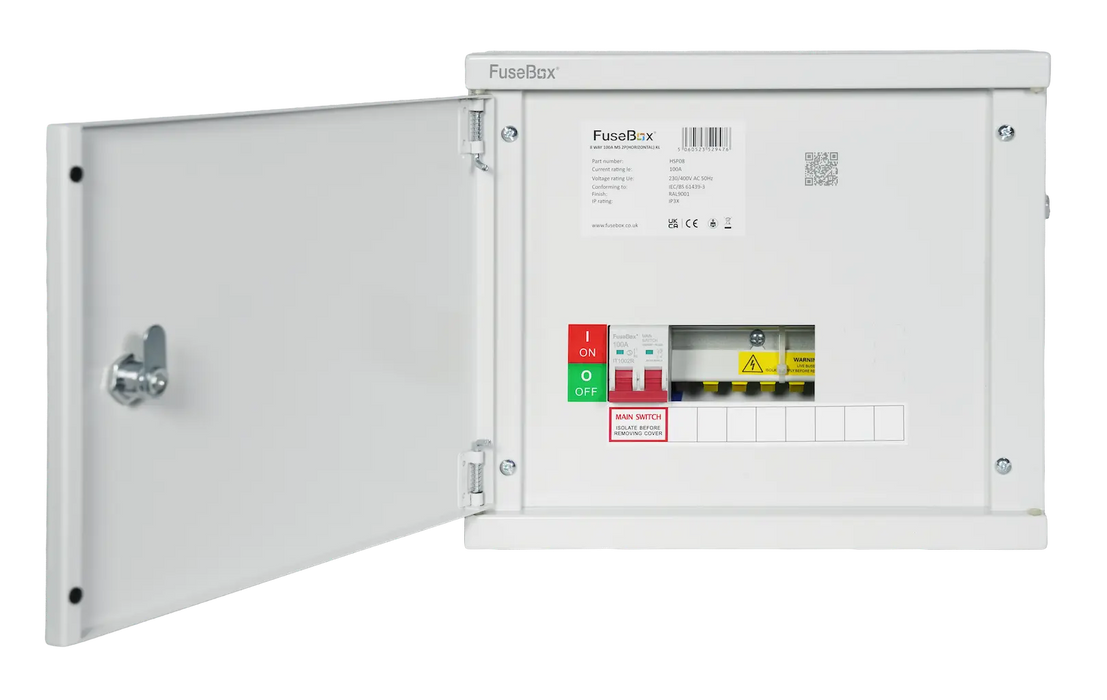

The FuseBox HSP08 8 Way Horizontal SPN Distribution Board is a compact single-phase power distribution solution designed for installations where available wall space is restricted. Its horizontal configuration makes it ideal for electrical cupboards, commercial utility areas and other space-limited locations where fitting a conventional distribution board may be difficult.
Providing 8 usable ways, the HSP08 is supplied with a 100A 2-pole main switch and features a fixed horizontal fork-type busbar. Its spacious internal layout provides ample room for cable routing, wiring and termination, helping installers achieve a neat and efficient installation.
The removable raised DIN rail improves wiring access, while aligned earth and neutral bars help simplify connections. Manufactured from robust 1.2mm steel with a durable RAL9001 powder-coated finish, the enclosure also features top and bottom gland plates, a reversible door and a convenient coin-slot door lock.
Key Features
- 8-way horizontal SPN distribution board
- 8 usable ways
- Supplied with 100A 2-pole main switch
- Horizontal design for space-restricted installations
- Fixed horizontal fork-type busbar
- Spacious internal layout for easier cable routing and termination
- Removable and raised DIN rail for improved wiring access
- Aligned earth and neutral bars for faster and tidier wiring
- Coin-slot door lock for secure and convenient access
- Top and bottom gland plates for flexible cable entry
- No knockouts for greater flexibility when glanding
- Reversible door can be fitted to either side
- Easily removable devices
- Robust 1.2mm steel enclosure
- Surface-mounted installation
- IP3X rated enclosure
- 16kA short-circuit rating
Technical Specifications
- Manufacturer: FuseBox
- Part Number: HSP08
- Distribution Type: SPN (Single Phase and Neutral)
- Usable Ways: 8
- Main Switch Rating: 100A
- Main Switch: 2 Pole
- Rated Voltage: 400V
- Frequency: 50Hz
- Short-Circuit Rating: 16kA
- Busbar Type: Fork
- IP Rating: IP3X
- Mounting Type: Surface
- Material: Steel
- Enclosure Thickness: 1.2mm
- Finish: RAL9001 powder coated
- Cable Entry Points: Top and bottom gland plates
- Dimensions (H x W x D): 348 x 295 x 113mm
- Standard: EN 61439-3
