Product Description

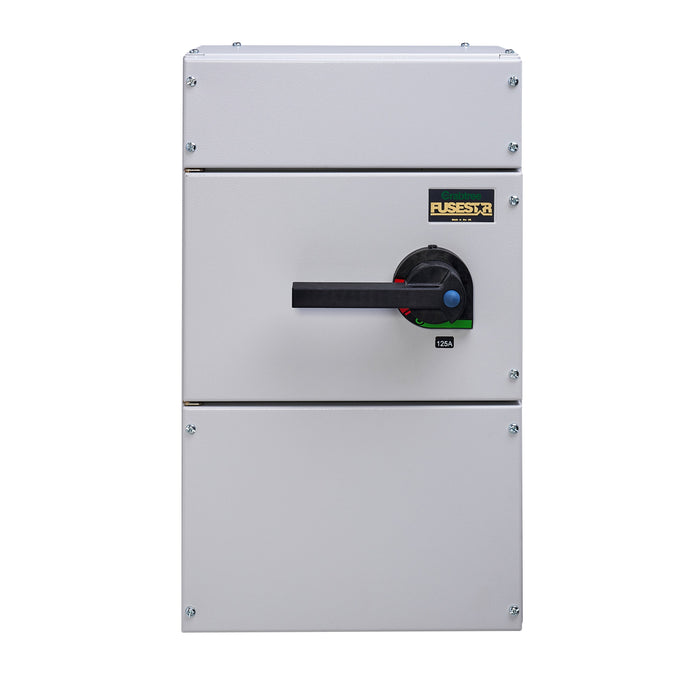

The Crabtree 191251NF is a 125A 1P+N fuse combination unit supplied complete with BS88 fuses. Designed for safe isolation and protection of electrical circuits, it is ideal for use in commercial and industrial power distribution applications.

Key Features

• Supplied complete with 125A BS88 fuses
• 125A 1P+N fuse combination unit for reliable circuit protection
• IP4X rated steel enclosure for enhanced safety
• Operating handle can be padlocked for secure isolation
• Front door reversible with 180° opening for ease of access
• Accommodates cable spreading room up to 150mm² 4 core (one end only)
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 60947-3

Dimensions

Height: 530mm
Width: 315mm
Depth: 241mm

Technical Information

Built for dependable performance and compliance, the 191251NF fuse combination unit provides a robust solution for isolation and overcurrent protection. Its generous internal space and durable enclosure make installation and maintenance straightforward, even in demanding environments.

Downloads

Data Sheet:
Click here to view the data sheet
