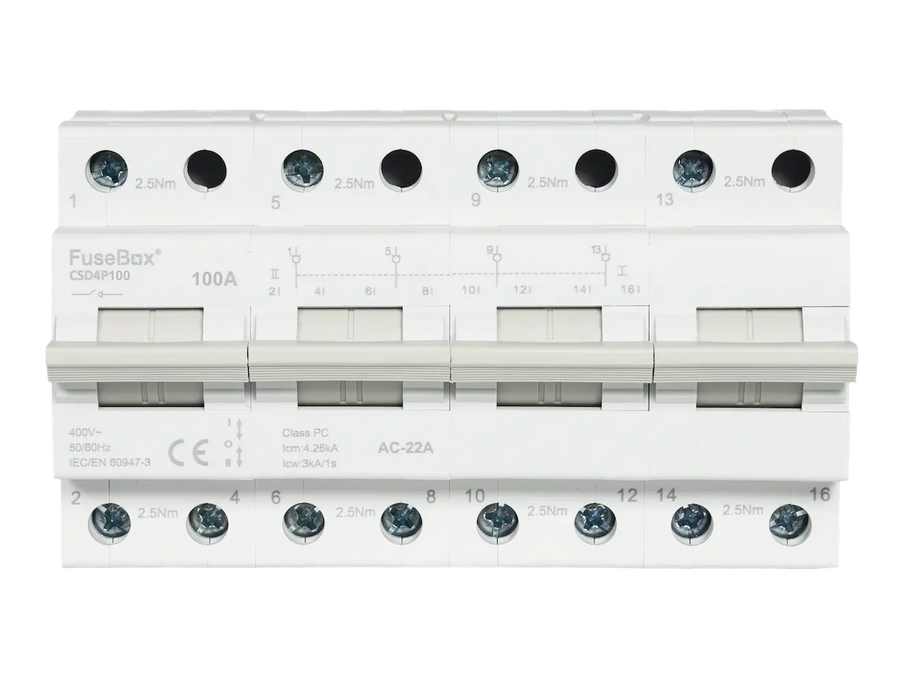

FuseBox CSD4P100 4-Pole 8 Module 100A DIN Rail Mounted Changeover Switch
FuseBox CSD4P100 100A 4-Pole 8 Module DIN Rail Mounted Changeover Switch
Product Description
The FuseBox CSD4P100 is a high-performance 100A 4-pole manual changeover switch designed to provide reliable switching between two electrical power supplies. Ideal for mains and backup generator applications, this DIN rail mounted changeover switch offers a practical solution for managing alternative power sources in residential, commercial and industrial electrical installations.
Featuring a compact 8-module design, the FuseBox CSD4P100 allows efficient use of space within compatible electrical distribution boards and enclosures. Its manually operated switching mechanism provides straightforward control over the selected power source, while clearly marked switch positions make it easy to identify the operating state.
With a rated current of 100A and a rated voltage of 230V/400V, this 4-pole changeover switch is suitable for compatible three-phase electrical distribution systems requiring manual power source selection. Manufactured in accordance with BS EN 60947-3, it offers an IP20 protection rating and a short-time withstand current rating of 3kA for 1 second, making it a dependable choice for appropriately designed electrical installations.
Key Features
- 100A Rated Current: Designed for electrical installations requiring manual power source selection with a current rating of up to 100A.
- 4-Pole Configuration: Suitable for compatible three-phase electrical distribution systems.
- Compact 8-Module Design: Helps maximise available space within compatible electrical distribution enclosures.
- Manual Changeover Operation: Allows straightforward selection between mains and alternative power supplies.
- Clear Switch Position Indicators: Provides easy visual identification of the selected operating position.
- DIN Rail Mounting: Enables convenient installation within suitable distribution boards and electrical panels.
- Mains and Generator Applications: Ideal for installations requiring manual changeover between mains electricity and backup generator supplies.
- 230V/400V Rated Voltage: Suitable for compatible electrical systems operating at 50/60Hz.
- IP20 Protection Rating: Designed for installation within suitable protective electrical enclosures.
- 3kA Short-Time Withstand Rating: Rated at 3kA for 1 second.
- BS EN 60947-3 Compliance: Manufactured in accordance with the relevant electrical switching standard.
Technical Specifications
- Brand: FuseBox
- Manufacturer Part Number: CSD4P100
- Product Type: Manual Changeover Switch
- Number of Poles: 4 Pole
- Number of Modules: 8
- Rated Current: 100A
- Rated Voltage: 230V/400V
- Frequency: 50/60Hz
- Mounting Type: DIN Rail
- IP Rating: IP20
- Short-Time Withstand Current: 3kA / 1 Second
- Operating Temperature: -5°C to +40°C
- Dimensions (H x W x D): 82.5 x 143.2 x 75mm
- Compliance Standard: BS EN 60947-3
Applications
The FuseBox CSD4P100 100A 4-pole DIN rail changeover switch is suitable for electrical installations where manual switching between alternative power supplies is required. Typical applications include:
- Mains-to-generator manual changeover installations.
- Backup power supply arrangements.
- Compatible three-phase electrical distribution systems.
- Commercial and industrial electrical installations.
- Residential electrical systems requiring alternative power source selection.
Why Choose the FuseBox CSD4P100?
The FuseBox CSD4P100 combines a 100A current rating, 4-pole switching configuration and compact DIN rail mounted construction in one practical device. Its clearly indicated manual switching positions, 8-module footprint and compliance with BS EN 60947-3 make it a suitable choice for electricians and electrical contractors installing compatible mains and backup generator changeover systems.
