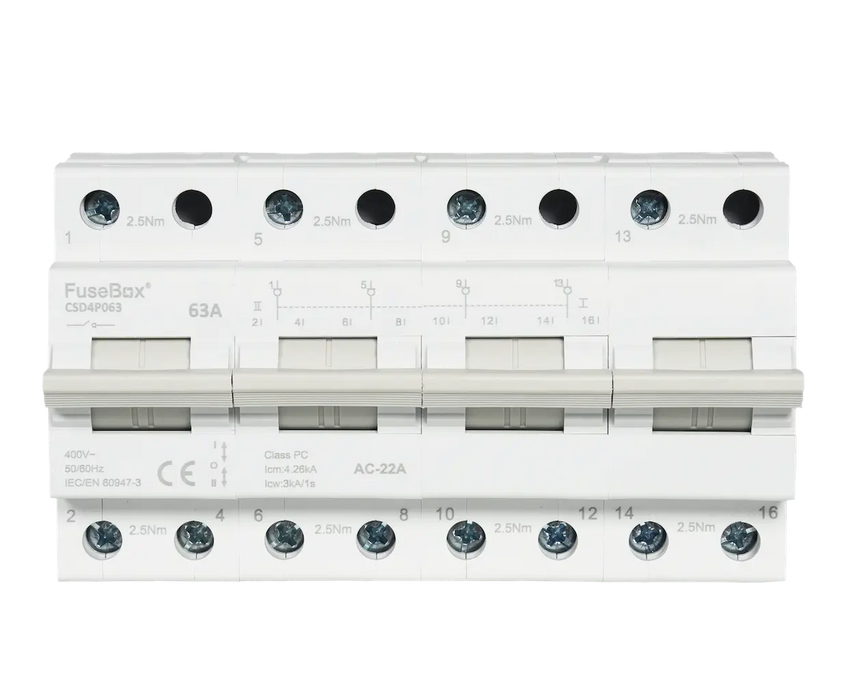

FuseBox CSD4P063 4-Pole 8 Module 63A DIN Rail Mounted Changeover Switch
FuseBox CSD4P063 63A 4-Pole 8 Module DIN Rail Changeover Switch
Product Description
The FuseBox CSD4P063 is a reliable and efficient 63A 4-pole manual changeover switch designed to provide convenient switching between two electrical power supplies. Ideal for mains and backup generator applications, this DIN rail mounted changeover switch offers a practical solution for managing alternative power sources in residential, commercial and industrial electrical installations.
Featuring a compact 8-module design, the FuseBox CSD4P063 is suitable for installation within compatible electrical distribution boards and enclosures. Its manually operated switching mechanism enables controlled selection between power sources, while clearly marked switch positions provide straightforward operation and easy visual identification of the selected supply.
With a rated current of 63A and an operating voltage of 230V/400V, this 4-pole changeover switch is suitable for compatible three-phase electrical distribution systems requiring manual power source selection. Manufactured in accordance with BS EN 60947-3, it features an IP20 protection rating and a short-time withstand current rating of 3kA for 1 second, ensuring dependable operation in appropriately designed electrical installations.
Key Features
- 63A 4-pole manual changeover switch for selecting between two electrical power supplies.
- Compact 8-module design for efficient use of space within compatible distribution enclosures.
- DIN rail mounting allows convenient installation in suitable electrical panels and distribution boards.
- Manual switching mechanism provides direct control over the selected power source.
- Clearly marked switch positions for easy identification of the operating state.
- Suitable for mains and backup generator changeover applications.
- 4-pole configuration suitable for compatible three-phase electrical installations.
- Rated voltage of 230V/400V with an operating frequency of 50/60Hz.
- IP20 protection rating for installation within suitable electrical enclosures.
- Short-time withstand current rating of 3kA for 1 second.
- Manufactured in accordance with BS EN 60947-3.
Technical Specifications
- Brand: FuseBox
- Product Code: CSD4P063
- Product Type: Manual Changeover Switch
- Number of Poles: 4 Pole
- Number of Modules: 8
- Rated Current: 63A
- Rated Voltage: 230V/400V
- Frequency: 50/60Hz
- Mounting Type: DIN Rail
- IP Rating: IP20
- Short-Time Withstand Current: 3kA / 1 Second
- Operating Temperature: -5°C to +40°C
- Dimensions (H x W x D): 82.5 x 143.2 x 75mm
- Compliance Standard: BS EN 60947-3
Applications
The FuseBox CSD4P063 63A 4-pole changeover switch is designed for electrical installations requiring manual selection between alternative power supplies. Typical applications include mains-to-generator changeover systems, backup power arrangements and compatible three-phase electrical distribution installations where reliable power source selection is required.
