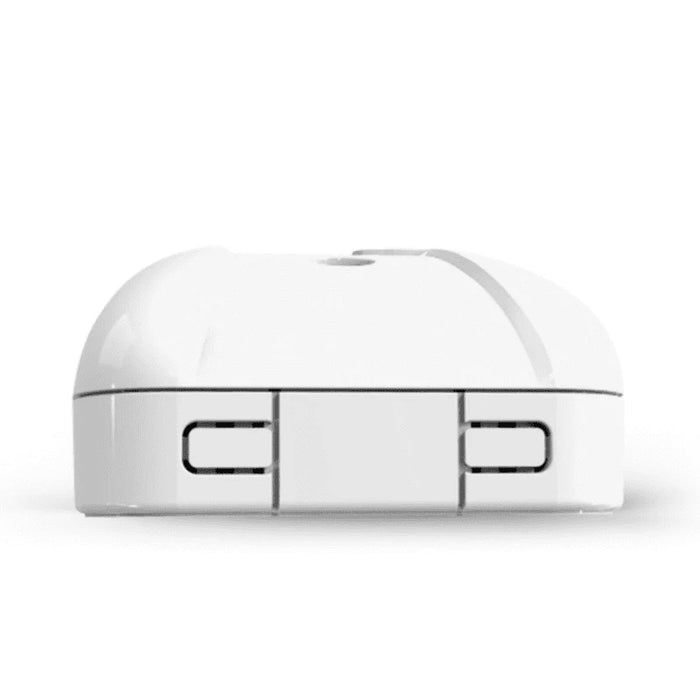

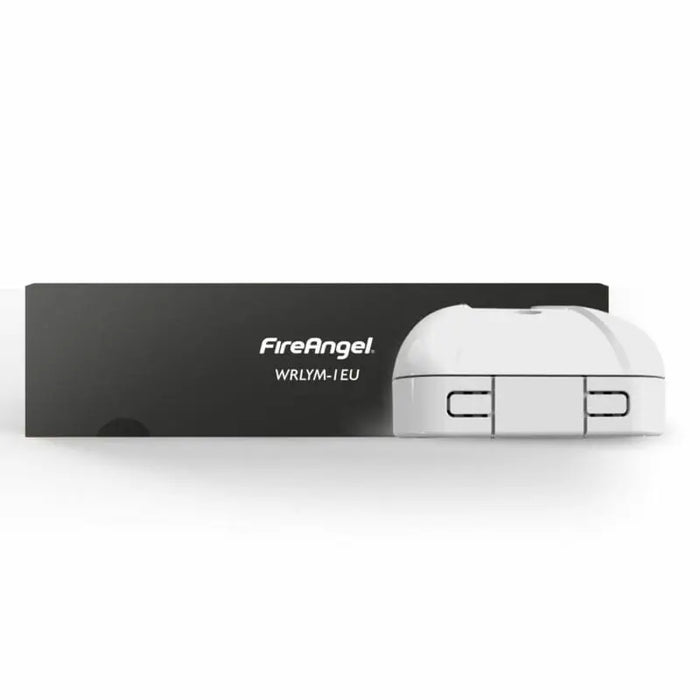

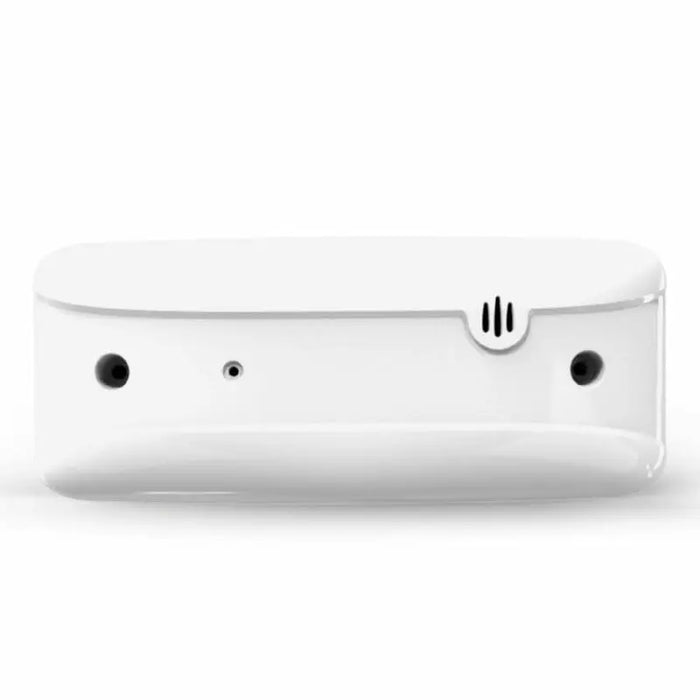

FireAngel WRLYM-1EU Wireless Mains Relay with Lithium Battery Back-up
FireAngel WRLYM-1EU Wireless Mains Relay with Lithium Battery Back-up
The FireAngel WRLYM-1EU Wireless Mains Relay is a Smart RF-enabled relay designed to extend FireAngel Specification alarm networks without the need for hardwired interlinking. Its ultra-slim design and wireless connectivity make it ideal for social housing, private rented properties and assisted living environments where flexibility and compliance are essential.
This wireless relay enables seamless integration between FireAngel smoke and carbon monoxide alarms and third-party systems such as fire doors, telecare and building management systems. Independent relay activation allows fire and CO alarm signals to be differentiated for targeted responses.
Key Features
- Mains powered relay with sealed lithium battery back-up
- Smart RF wireless interlink for flexible system expansion
- Connects fire and CO alarms to external devices such as fire doors and telecare systems
- Ultra-slim design for discreet installation
- Selectable pulse signal or continuous switched signal output
- Independent relay activation for fire and CO alarm events
- Compatible with FireAngel Specification alarms and Connected Home solutions
Smart RF Wireless Integration
When installed, the WRLYM-1EU wirelessly interlinks with FireAngel Specification mains-powered smoke alarms (SM-SN-1) or heat alarms (HM-SN-1). Using Smart RF technology, alarms communicate across the property so that when one alarm activates, all connected alarms respond simultaneously.
This relay supports wireless and hybrid alarm networks, offering a practical solution for retrofits and complex installations where running interlink cabling is not feasible. A hardwired-only relay option is also available for projects requiring fixed wiring.
Designed for Safety, Flexibility & Compliance
Engineered to meet modern fire and carbon monoxide safety requirements, the WRLYM-1EU ensures reliable operation even during power interruptions thanks to its integrated battery back-up. Its compatibility with FireAngel Connected systems allows future expansion and enhanced monitoring capabilities.
