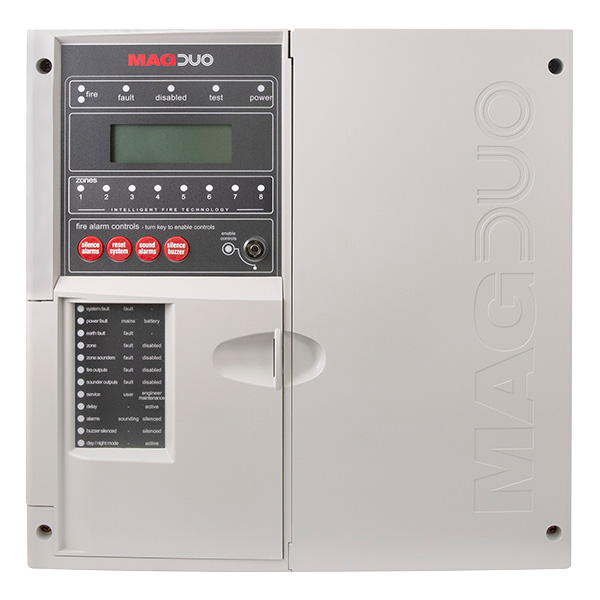

ESP MAGDUO8 8 Zone 2 Wire Fire Panel Grey

ESP MAGDUO8 8 Zone 2 Wire Fire Panel Grey

8 Zone Two Wire Fire Panel

• Two Wire fire alarm system
• Active end of line monitoring and head removal
• Up to 32 devices per zone (Dependent on Device Loading Unit: DLU)
• 4 line x 20 character LCD display
• Ability to differentiate between smoke detector, heat detector or a manual call point alarms
• Alarm confirmation feature
• RS485 connection to up to 8 repeater panels
• Event log storing up to 500 events
• 3 enhanced test modes
• Zone can be configured to day/night detection mode
• Delay programming options
• 4 or 8 zone panel can now be configured to accept conventional devices on zones 5 to 8 with the optional conventional zone card
• Certified to EN54 2/4 Standards
• Requires 2 x 12V 3.2Ah batteries (BAT32)
• Optional extended battery box with capacity for 2 x 12V 7.0Ah batteries

Data Sheet:
