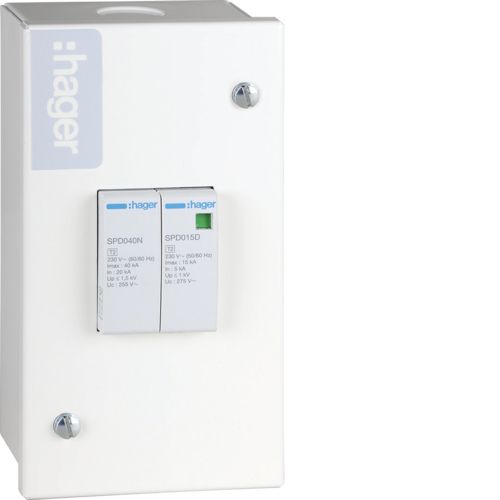

Hager VA2T2SPD Type 2 SPD Enclosure + L&N Cable

Features of Surge Enclosure
  • Protects the installation against transient overvoltages
  • End of life indicator on Line cartridge gives indication when replacement is required.
  • Ideal when retrofitting surge protection to an installation
  • No space required inside existing consumer unit or distribution board.

Specification

  • Standard: BS EN 61439-3
  • Rated Operational Voltage: 230V
  • Rated Frequency: 50/60 Hz
  • Max discharge (lmax) or impulse (limp): 15kA
  • Nominal discharge current (lm): 5 kA
  • Voltage protection level up according to IEC 61643-1: 1kV
  • Voltage continuous operating voltage Uc: 275V
  • Nominal Tightening Torque: 3.6 Nm
  • Pollution Degree to IEC 60664 / IEC 60947-2: 2
  • Protection index IP: IP2X
  • Working Temperature: -40°C up to 60°C
  • Storage Temperature: -40°C up to 80°C
  • Altitude: 2000m
  • Remote Contact: No
  • Connection Capacity: 35mm²
  • Size H x W x D: 80mm x 152mm x 68mm
  • RoHs: Voluntary Conformity
  • Warranty: 2 Years

Data Sheet:

Click Here for Data Sheet
