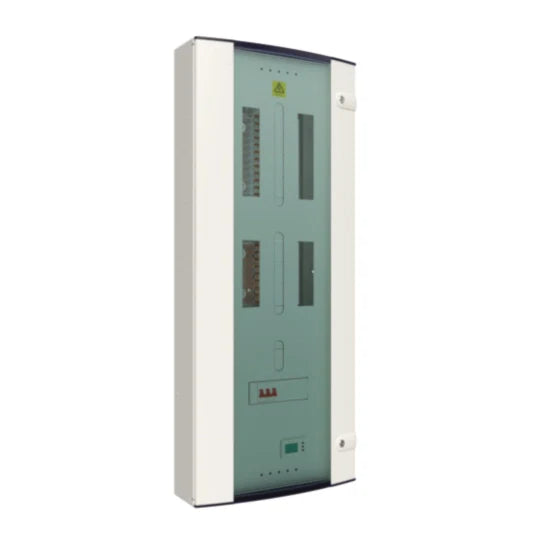

Hager JKD168TM 125A Dual Metered TPN Power & Lighting Board 6/8 Way Pan Assemblies Modbus Comms

Hager JKD168TM 125A Dual Metered TPN Power & Lighting Board 6/8 Way Pan Assemblies Modbus Comms

Power & Lighting Distribution Boards – Split Metered, BS EN 61439-3 Compliant

The Power & Lighting (P&L) distribution boards are designed to separately monitor small power and lighting circuits, making them ideal for commercial building applications. Fully compliant with BS EN 61439-3 and Part L2 of the Building Regulations, these boards are engineered to simplify tenant billing, improve energy efficiency, and ensure straightforward monitoring.

Key Features:

• Conforms to BS EN 61439-3 for reliability and compliance
• Split metered sections for separate monitoring of small power (SP) and lighting (LL) circuits
• Factory fitted 125A TP switch disconnector
• MID approved energy meter with CTs included
• Modbus RS 485 communication for integration with building management systems
• Suitable for tenant billing applications
• Two separate monitored groups of protection devices within a single distribution board
• Advanced design allows two modes of operation
• Reversible load type labelling to suit installation (Lighting or Power at top/bottom)
• Clear labelling on the meter for SP (Small Power), LL (Lighting), and Sys (Total System Load)

Applications:

• Commercial buildings
• Tenant billing solutions
• Energy monitoring and compliance with Part L2
• Lighting and small power circuit separation

Data Sheet:

Instruction Manual:
