Product Description

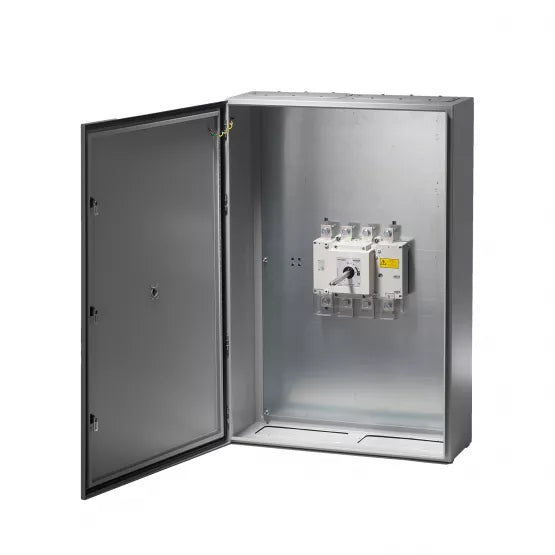

The Europa LB12503PSNME is a robust 1250A steel enclosed switch disconnector designed for demanding industrial and commercial power distribution applications. Featuring a 3 pole configuration with switched neutral (early make / late break), this unit is AC-22 rated and provides dependable isolation and operational safety.

Manufactured with a heavy-duty epoxy-coated steel enclosure and rated to IP65, the LB12503PSNME offers excellent protection against dust and water ingress, making it suitable for both indoor and outdoor installations. Safety features include a padlockable handle in the OFF position and a door interlock with defeat mechanism to ensure safe maintenance procedures.

Key Features & Benefits

• 3 pole configuration with switched neutral (early make / late break)
• 1250A rated with AC-22 operational duty
• IP65 protection for harsh industrial environments
• Epoxy-coated steel enclosure finished in RAL 7035
• Padlockable handle in the OFF position for added security
• Door interlock with defeat mechanism for safe servicing
• Lug terminals for secure high-current cable termination
• Top and bottom gland plates for flexible cable entry
• Over-engineered, user-friendly and economical solution
• Suitable for a wide range of industrial applications

Typical Applications

• Main LV power distribution systems
• Industrial plant rooms and switch rooms
• Manufacturing and processing facilities
• Infrastructure and utility installations
• Critical isolation points in commercial buildings

Technical Specification

• Manufacturer: Europa
• Model: LB12503PSNME
• Rated Current: 1250A
• Operational Rating: AC-22
• Poles: 3 Pole + Switched Neutral
• Ingress Protection: IP65
• Enclosure Material: Epoxy coated steel
• Colour: RAL 7035 (Grey)
• Terminal Type: Lug terminals
• Mounting: Surface mounted
• Dimensions: H 1200 × W 800 × D 300 mm

Documentation

Data Sheet:
Click here to download the LB12503PSNME data sheet
