Product Description

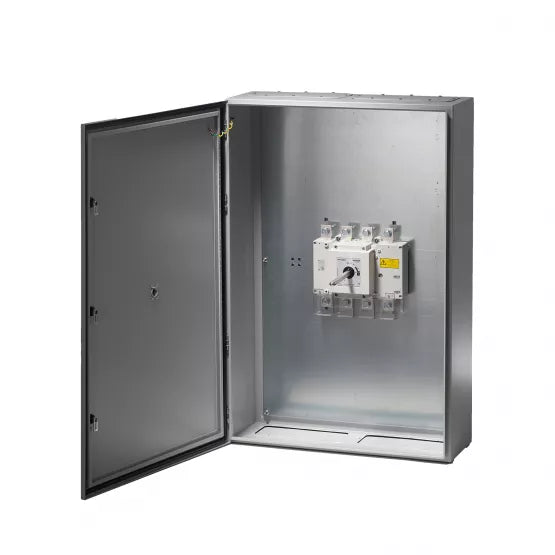

The Europa LB10003PSNME is a heavy-duty 1000A steel enclosed switch disconnector designed for high-current industrial and commercial power distribution applications. Featuring a 3 pole configuration with switched neutral (early make / late break), this unit is AC-22 rated and delivers reliable isolation and enhanced operational safety.

Constructed with a robust epoxy-coated steel enclosure and rated to IP65, the LB10003PSNME provides excellent protection against dust and water ingress, making it suitable for demanding indoor and outdoor environments. Safety is further reinforced with a padlockable handle in the OFF position and a door interlock with defeat mechanism to ensure secure servicing and maintenance.

Key Features & Benefits

• 3 pole configuration with switched neutral (early make / late break)
• 1000A rated (AC-22 duty)
• IP65 ingress protection for harsh environments
• Durable epoxy-coated steel enclosure
• Padlockable handle in the OFF position
• Door interlock with defeat mechanism for enhanced safety
• Lug terminals for secure high-current connections
• Top and bottom gland plates for flexible cable entry
• Over-engineered, user-friendly and cost-effective design
• Suitable for a wide range of industrial applications

Applications

• Main LV power distribution systems
• Industrial switch rooms and plant rooms
• Manufacturing and processing facilities
• Critical power isolation points
• Large commercial and infrastructure projects

Technical Specification

• Manufacturer: Europa
• Model: LB10003PSNME
• Rated Current: 1000A
• Duty Rating: AC-22
• Poles: 3 Pole + Switched Neutral
• Ingress Protection: IP65
• Enclosure: Epoxy coated steel
• Colour: RAL 7035 (Grey)
• Terminal Type: Lug terminals
• Mounting: Surface mounted
• Dimensions: H 1200 x W 800 x D 300 mm

Documentation

Data Sheet:
Click here to download the LB10003PSNME data sheet
