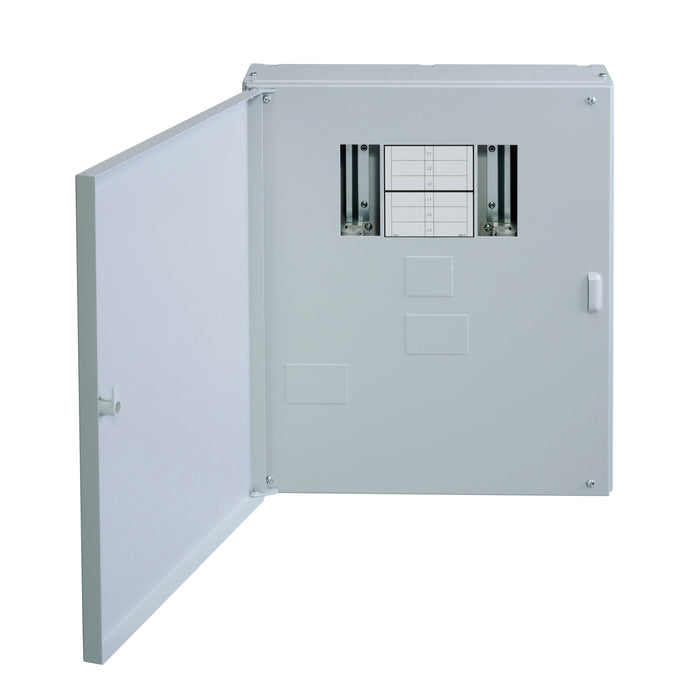

Crabtree 18LS04L Loadstar 4 Way 125A 3P+N Type B Surface Distribution Board
Crabtree 18LS04L Loadstar 4 Way 125A 3P+N Surface Distribution Board
Product Overview
The Crabtree 18LS04L Loadstar 4 Way 125A 3P+N Surface Distribution Board is a compact, high-performance solution designed for three-phase electrical distribution in commercial and industrial environments. With a 125A rated capacity, this board provides flexibility and reliability for installations requiring robust power management in a surface-mounted enclosure.
Designed and manufactured in the UK to BS EN 61439-3, the Loadstar range offers exceptional build quality, compliance, and adaptability. Multiple incomer configurations are available, allowing the board to be tailored to suit specific installation requirements.
Key Features & Benefits
- 4-way 3P+N Type ‘B’ surface mounted distribution board.
- Rated at 125A for three-phase power distribution.
- Available with switch disconnector, RCCB, or direct connection incomer options.
- Compatible with Crabtree Loadstar 10kA MCBs:
- Single pole and triple pole Type B, C, and D MCBs (6A to 63A).
- Single pole Type B and C RCBOs (6A to 50A).
- Supports optional accessories including:
- LS125MPKIT – Pulsed Output / Modbus RTU metering kit.
- LS125MIDMPKIT – MID-approved integral metering kit.
- LS125SPKITL – Integral Type 2 surge protection kit.
- Durable RAL 7035 grey powder-coated steel enclosure.
- Designed and manufactured in the UK to BS EN 61439-3.
Ideal Applications
Suitable for commercial buildings, industrial units, workshops, plant rooms, and utility areas where reliable three-phase distribution and flexible configuration options are required.
Technical Summary
- Ways: 4
- Rated Current: 125A
- Poles: 3P+N
- Mounting: Surface
- Type: B
- Standard: BS EN 61439-3
- Finish: RAL 7035 Grey Powder Coat
