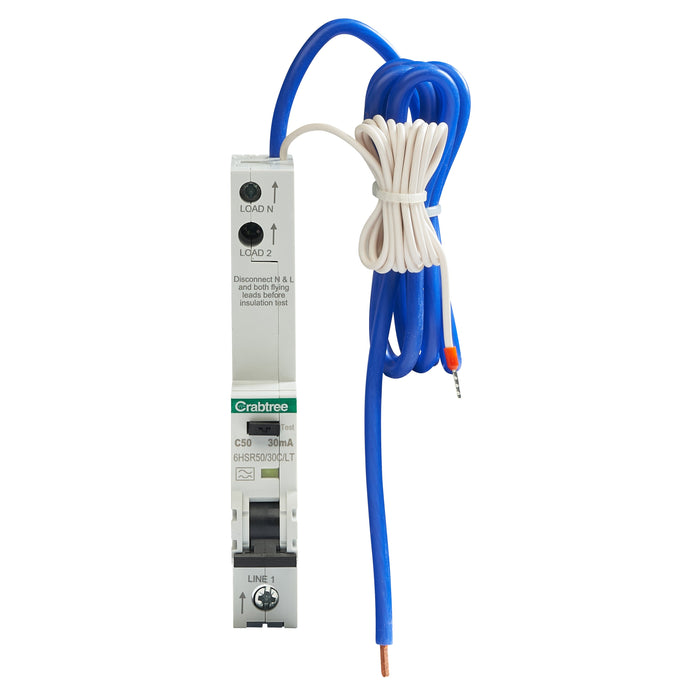

Crabtree 6HSR50/30C/LT Loadstar 1 Module 50A C Curve 30mA 10kA 1P+N Type A RCBO Long Tail
Crabtree 6HSR50/30C/LT Loadstar 50A C Curve 30mA Type A RCBO – Long Tail
The Crabtree 6HSR50/30C/LT Loadstar RCBO is a compact, single-module circuit protection device designed for higher-current applications where extended connection leads are required. Combining MCB and RCD protection in one unit, it provides dependable defence against overloads, short circuits, and earth leakage faults.
Rated at 50A with a C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is ideal for circuits with higher inrush currents, such as those supplying motors, inductive loads, or commercial equipment. A robust 10kA breaking capacity ensures reliable fault protection in both domestic and commercial electrical installations.
Key Features
- 50A C Curve MCB combined with 30mA Type A RCD protection
- Single-module width RCBO for space-saving installations
- 10kA short-circuit breaking capacity
- 1P+N configuration with switched neutral
- Uni-directional RCBO design
- Supplied with extended 1200mm neutral and earth tails
- Fully compatible with Crabtree Loadstar distribution boards
Applications
Ideal for higher-load final circuit protection where additional tail length is required, this RCBO is suitable for commercial installations, larger socket circuits, and equipment with increased inrush characteristics.
